The SAM3S1A is a member of the Microchip's SAM3S series microcontrollers based on the high-performance 32-bit ARM® Cortex®-M3 RISC processor.
It operates at a maximum speed of 64MHz and features 64KB of flash memory and 16KB of SRAM. The extensive peripheral set includes a Full Speed USB device port with embedded transceiver, USART, two UARTs, two TWIs (I2C), two SPIs, I2S, PWM timer, three 16-bit timers, RTC, 8-ch 12-bit ADC, and an analog comparator.
The QTouch library offers an easy way to implement buttons, wheels, and sliders. The parallel data capture mode on the PIOs collects data from external devices not compliant with standard memory read protocols, such as low-cost image sensors. DMA transfers the data to memory, offloading the CPU.
The device operates from 1.62V to 3.6V, is available in 48-pin QFP and QFN packages, and is pin-to-pin compatible with the SAM3N1A.
In stock
SKU ATSAM3S1AB-AU

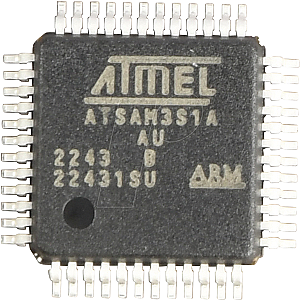

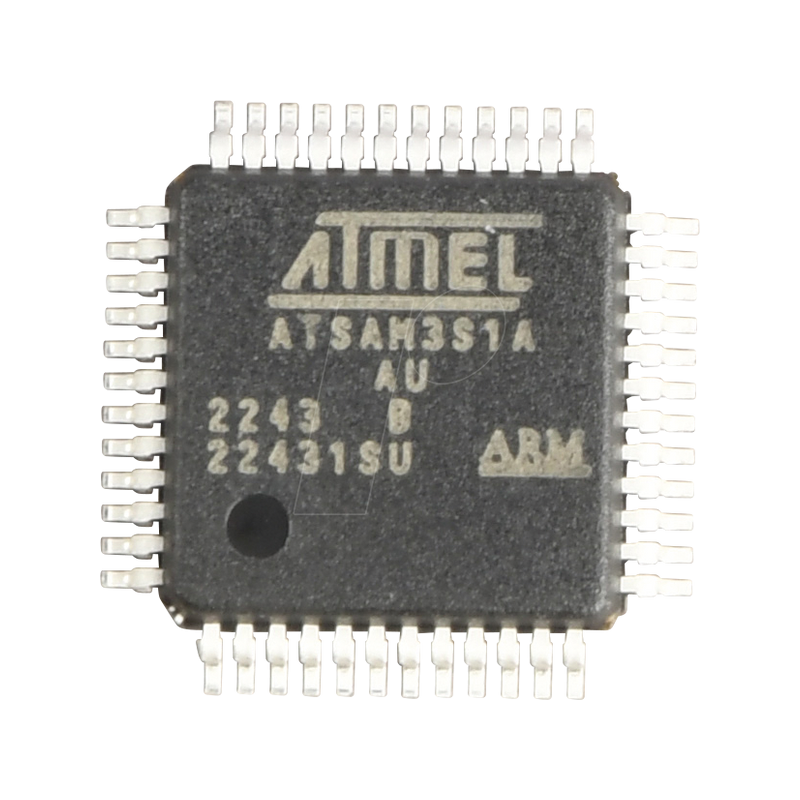

Microcontroller, Cortex M3, 64MHz, 64KB Flash,16KB RAM,QFP-48
MPN ATSAM3S1AB-AU
Manufacturer MICROCHIP
€7.12
incl. 19% VAT · €5.98 excl. VAT
Package
QFP-48
Specifications
General
Architecture
ARM
Core
Cortex M3
Mounting form
QFP-48
Technology
ARM
Specials
CPU clock
64 MHz
Implementation
Memory
64
RAM
16 kByte
I/O-Pins
34
Electrical values
Supply voltage
1.62..3.6 VDC
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATSAM3S1AB-AU
Weight
1.0E-5 kg
RoHS
conform
EAN/GTIN
9900003828018
HS-Code
85423190
