Based on the ARM® Cortex®-M3 processor, the Microchip's SAM3X8E runs at 84MHz and features 512KB of flash memory in 2 x 256KB banks and 100KB of SRAM in 64KB +32KB banks, with an additional 4KB as NFC (NAND Flash controller) SRAM.
Its highly-integrated peripheral set for connectivity and communication includes Ethernet, dual CAN, High Speed USB MiniHost and device with on-chip PHY, high-speed SD/SDIO/MMC, and multiple USARTs, SPIs, TWIs (I2C), and one I2S.
The SAM3X8E also features a 12-bit ADC/DAC, temperature sensor, 32-bit timers, PWM timer and RTC. The 16-bit external bus interface supports SRAM, PSRAM, NOR and NAND Flash with error code correction.
The Microchip QTouch Library is available for the SAM3X8E for easy implementation of buttons, sliders and wheels.
The device operates from 1.62V to 3.6V and is available in 144-pin QFP and BGA packages.
In stock

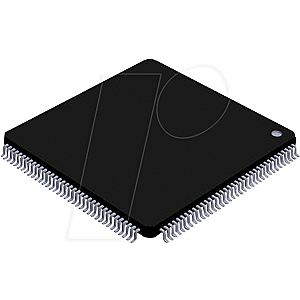

SKU ATSAM3X8EA-AU

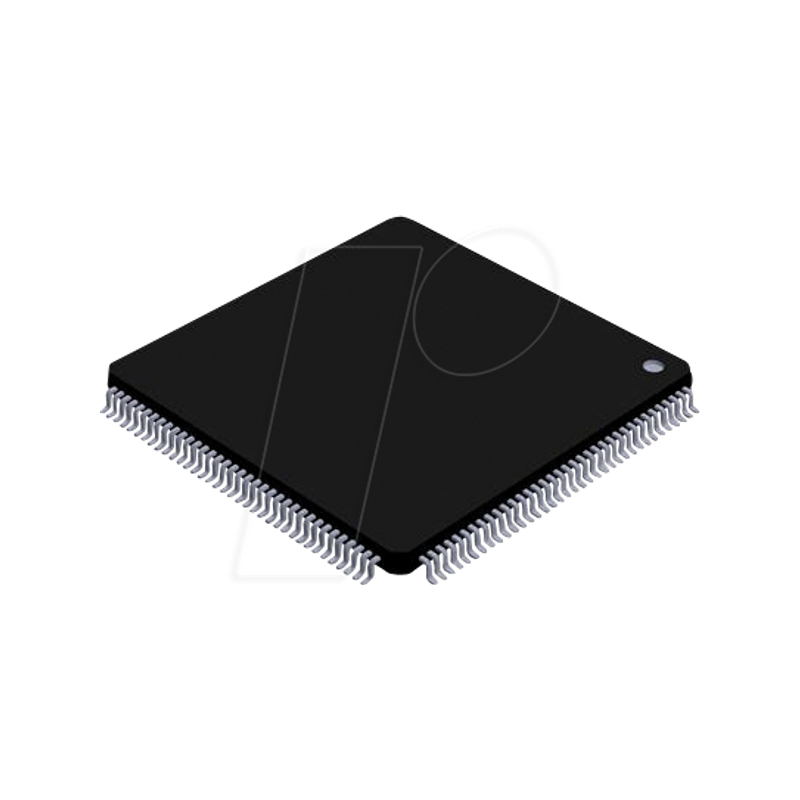

Microcontroller, Cortex M3, 84MHz, 512KB Flash,KB RAM,LQFP-144
MPN ATSAM3X8EA-AU
Manufacturer MICROCHIP
€22.85
incl. 19% VAT · €19.20 excl. VAT
Package
LQFP-144
Specifications
General
Architecture
ARM
Core
Cortex M3
Mounting form
LQFP-144
Technology
ARM
Specials
CPU clock
84 MHz
Implementation
Memory
512
I/O-Pins
103
Electrical values
Supply voltage
1.62..3.6 VDC
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATSAM3X8EA-AU
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003828117
HS-Code
85423190
