An ARM® Cortex®-M4 processor-based microcontroller (MCU), the SAM4E8E features a floating point unit and a high data bandwidth architecture and is targeted at industrial automation and building control applications.
The device embeds 512KB Flash and features multiple networking/connectivity peripherals, including two 2.0A/B compatible CAN interfaces and an IEEE Std 1588-compatible 10/100Mbps Ethernet MAC.
Additional communication interfaces include a FS USB device, a HS SDCard/SDIO/MMC interface, USARTs, SPIs and multiple TWIs.
Analog features includes dual 1Msps, 16-bit ADCs of up to 24 channels with analog front end offering offset and gain error correction, and a 2-channel, 1Msps, 12-bit DAC.
The SAM4E8E is available in 144-pin BGA and QFP package options.
In stock
SKU ATSAM4E8EA-AU

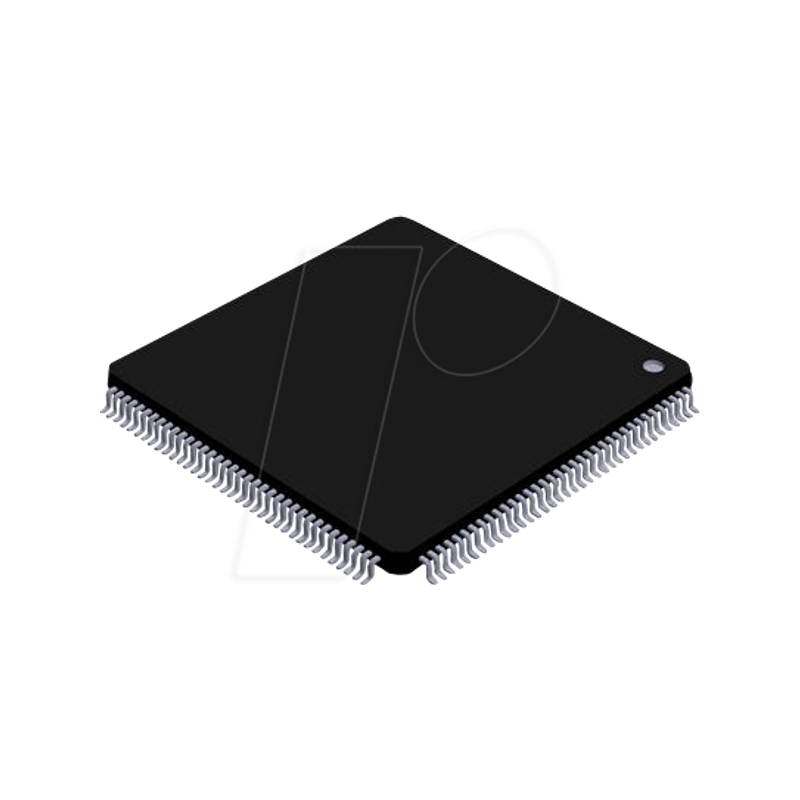

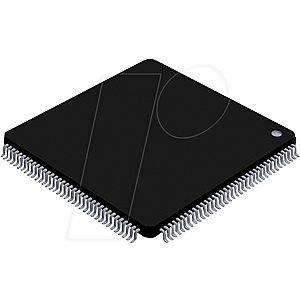

Microcontroller, Cortex M4, 120MHz, 512KB Flash,128KB RAM,LQFP-1
MPN ATSAM4E8EA-AU
Manufacturer MICROCHIP
€18.89
incl. 19% VAT · €15.87 excl. VAT
Package
LQFP-144
Specifications
General
Architecture
ARM
Core
Cortex M4
Mounting form
LQFP-144
Technology
ARM
Specials
CPU clock
120 MHz
Implementation
Memory
512
RAM
128 kByte
Electrical values
Supply voltage
1.62..3.6 VDC
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATSAM4E8EA-AU
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003828124
HS-Code
85423190
