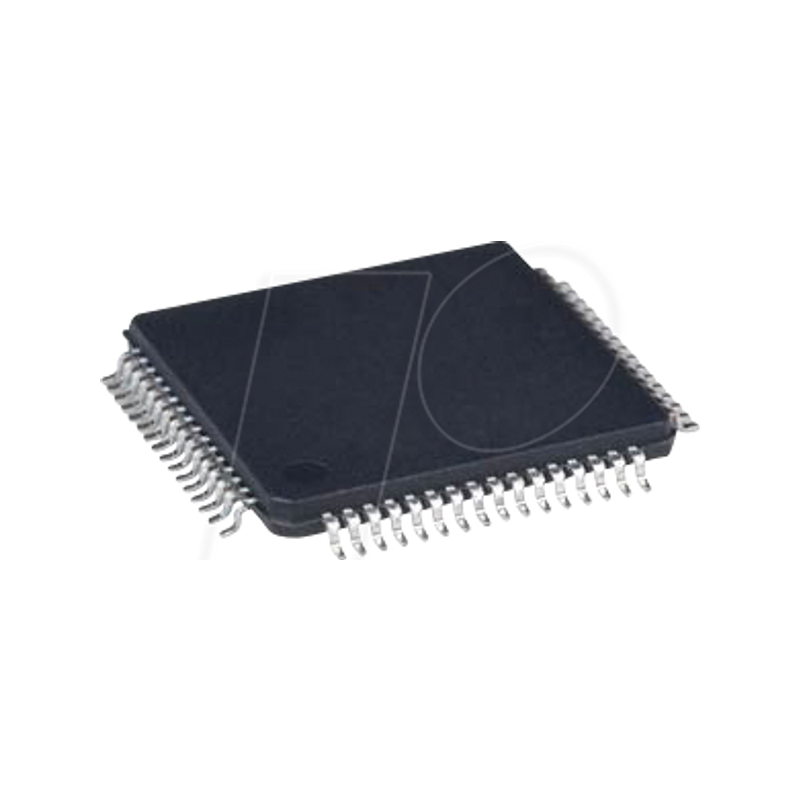

Microcontroller HCS08, 48 MHz, 60/4 KB, QFP64

The MC9S08JM60 series MCUs belong to the cost-effective and powerful HCS08 family of 8-bit microcontroller units (MCUs).
microcontroller units (MCUs). All MCUs in the family use the improved HCS08 core and are available
available with a variety of modules, memory sizes, memory types and package types.

8-bit HCS08 central processing unit (CPU)
- 48-MHz HCS08 CPU (central processing unit)
- 24-MHz internal bus frequency
- HC08 instruction set with additional BGND instruction
- Background debugging system
- Breakpoint capability that allows the setting of a single breakpoint
setting during in-circuit debugging (plus two additional breakpoints in on-chip debugging).
breakpoints in the on-chip debug module)
- In-circuit emulator (ICE) debug module with
two comparators and nine trigger modes. Eight
deep FIFO for storing change-of-flow addresses
and event-dependent data. The debug module supports both
tag and force breakpoints.
- Support for up to 32 interrupt/reset sources

Memory options
- Up to 60 KB of on-chip in-circuit programmable flash memory
Flash memory with block protection and security options
Memory options
- Up to 4 KB on-chip RAM
- 256 bytes USB RAM

Peripheral devices
- USB - USB 2.0 device with full speed (12 Mbit/s)
Controller with dedicated on-chip USB transceiver,
3.3 V regulator and USBDP pull-up resistor;
Supports control, interrupt, isochronous and bulk
transfers; supports endpoint 0 and up to 6 additional
additional endpoints; endpoints 5 and 6 can be
be combined to enable double buffering
- ADC - 12-channel, 12-bit analog-to-digital converter
Converter with automatic comparison function;
internal temperature sensor
- ACMP - Analog comparator with option for
comparison with internal reference; operation in Stop3
mode
- SCI - Two serial communication interfaces
Modules with optional 13-bit break LIN extensions
- SPI - Two 8- or 16-bit selectable serial peripherals
Interface modules with one receive data buffer
Hardware match function
- IIC - Inter-integrated circuit bus module for
operation with up to 100 kbps at maximum bus load
bus load; multi-master operation; programmable slave address
slave address; interrupt-controlled byte-by-byte data transfer; 10-bit addressing
transmission; 10-bit addressing and broadcast modes
Support for
- Timer - One 2-channel and one 6-channel
16-bit timer/pulse width modulator (TPM)
Modules: Selectable input capture, output
comparison and edge-controlled PWM capability for each channel.
each channel. Each timer module can be configured
configured for buffered centered PWM (CPWM)
on all channels
- KBI - 8-pin keyboard interrupt module
- RTC - real-time counter with binary or
decimal prescaler
