The AT32UC3A is a complete system-on-chip microcontroller based on the AVR32 UC RISC
Processor operating at frequencies up to 66 MHz. The AVR32 UC is a powerful 32-bit RISC
Microprocessor core designed for cost-sensitive embedded applications with a particular focus on
low power consumption, high code density and high performance.
The processor implements a memory protection unit (MPU) and a fast and flexible interrupt controller
to support modern operating systems and real-time operating systems. Higher
computing power can be achieved through a variety of DSP commands.
The AT32UC3A has on-chip flash and SRAM memory for secure and fast access.
For applications that require additional storage, an external storage interface is available on
AT32UC3A0 derivatives.
In stock
SKU AT32UC3A1512-AUT

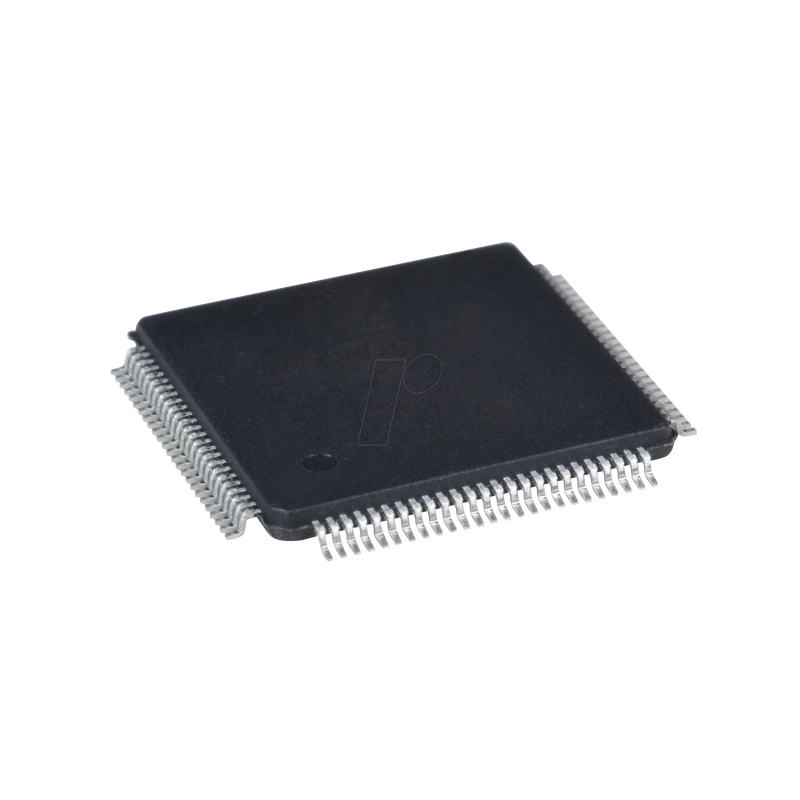

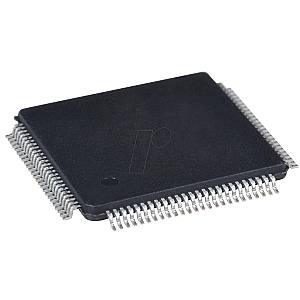

Microcontroller,512kB Flash,66MHz,TQFP100
MPN AT32UC3A1512-AUT
Manufacturer MICROCHIP
€20.37
incl. 19% VAT · €17.12 excl. VAT
Package
TQFP-100
Specifications
General
Model
AT32UC3A
Mounting form
TQFP-100
Design
Ethernet
Type
32-Bit Mikrocontroller
Technology
AVR
Specials
CPU clock
66 MHz
Implementation
Memory
512
RAM
64 kByte
I/O-Pins
69
Electrical values
Supply voltage
1.8 VDC
Supply Voltage Max.
1.8 V
Other
Temperature range
-40..+85
Interfaces
UART
4
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
AT32UC3A1512-AUT
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900003828483
HS-Code
85423190
