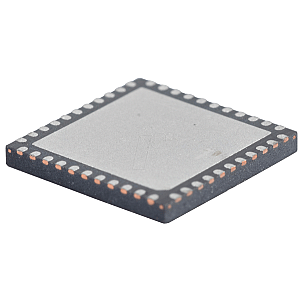

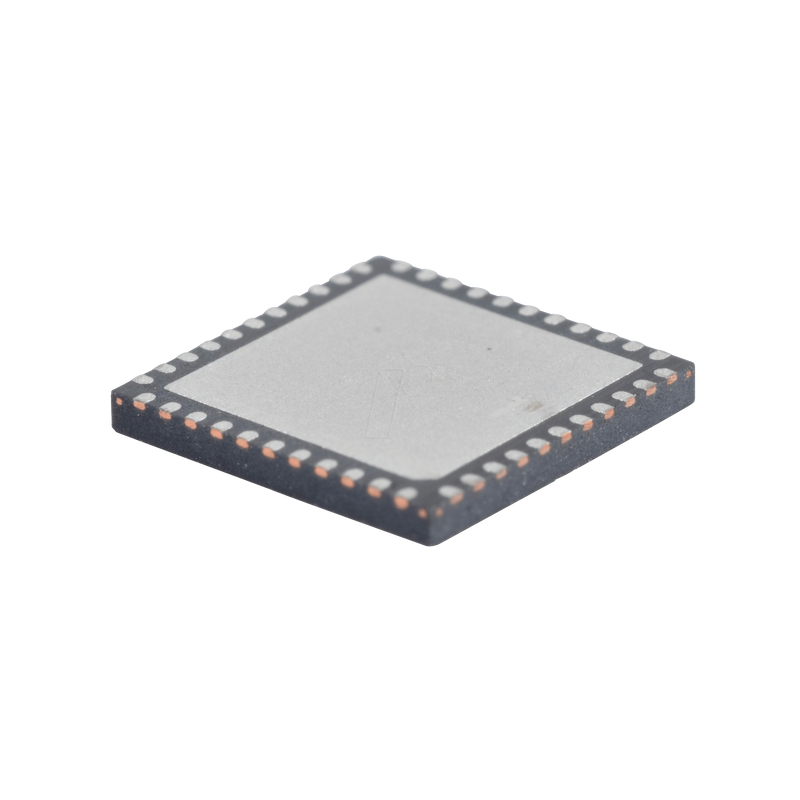

MIPS32 M4K® Mikrocontroller, 32-bit, 2,3-3,6V, 256 KB, QFN-44

- Up to 50 MHz/83 DMIPS, 32-bit RISC CPU with 0.5 mA/MHz current consumption (Typical)
- Two I2S/SPI modules for Codec and serial communications
- Peripheral Pin Select (PPS) functionality
- Parallel Master Port (PMP) for graphics interfaces
- Charge Time Measurement Unit (CTMU)
- Supports mTouchTM Capacitive touch buttons and sliders
- Provides high-resolution time measurement (1 ns)
- On-chip temperature measurement capability

Peripheral Features
- Peripheral Pin Select (PPS) functionality
- Up to 4 channels of hardware DMA with automatic data size detection
- Two UART and I2C modules
- Separate PLLs for CPU and USB clocks
- Hardware Real-Time Clock and Calendar (RTCC)
- Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
- Five Capture inputs and Five Compare/PWM outputs

Technical Data:
- Max Speed MHz: 50
- Program Memory Size (KB): 256
RAM (KB): 64
Auxiliary Flash (KB): 3
Temperature Range: -40 ... +105°C
Operating Voltage Range: 2.3 ... 3.6 V
CTMU: Yes
A/D channels: 13
Input Capture: 5
16-bit Digital Timers: 5
Parallel Port: PMP
Comparators: 3
Internal Oscillator: 8 MHz, 32 kHz
I/O Pins: 34
Pin Count: 44
