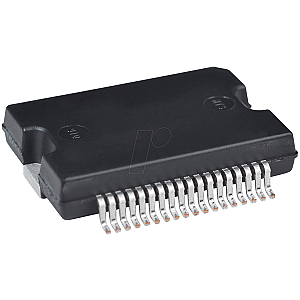

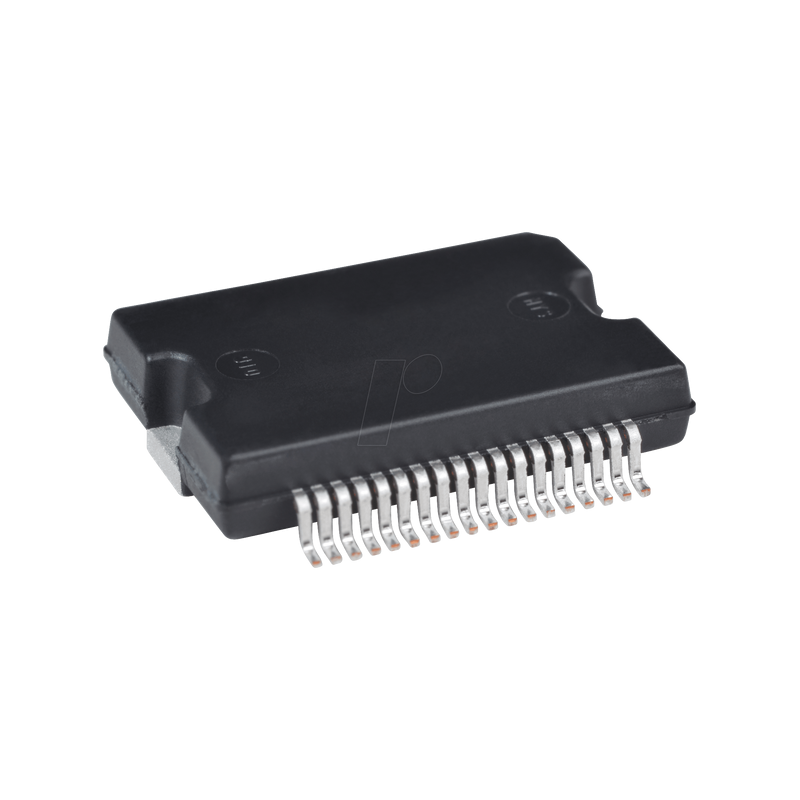

Motor driver, DC brush motor, 52 Vout, 2.8 Aout, 100 KHz, PSO-36

DMOS dual full bridge driver

Description:
The L6206 device is a DMOS dual full bridge designed for motor control applications, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in the PowerSO36 and SO24 (20 + 2 + 2) packages, the L6206 device features thermal shutdown and a non-dissipative overcurrent detection on the highside power MOSFETs plus a diagnostic output that can be easily used to implement the overcurrent protection.

Features:
- Operating supply voltage from 8 to 52 V
- 5.6 A output peak current (2.8 A DC)
- RDS(ON) 0.3 Ohm typ. value at Tj = 25 °C
- Operating frequency up to 100 KHz
- Programmable high-side overcurrent detection and protection
- Diagnostic output
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Undervoltage lockout
- Integrated fast freewheeling diodes

Applications:
- Bipolar stepper motor
- Dual or quad DC motor
