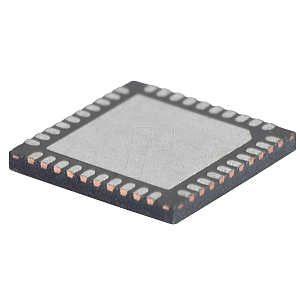

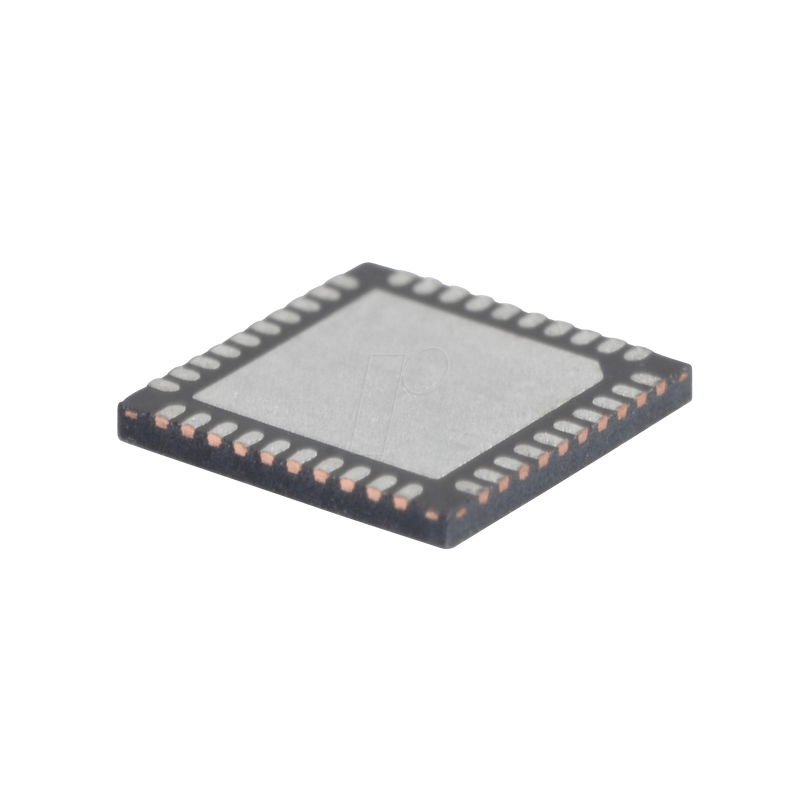

Motor driver, for DC motors, QFN-40

The MCP8024 is a 3-phase brushless DC (BLDC) gate driver with power modules. The MCP8024 device integrates three half-bridge drivers to drive external NMOS/NMOS transistor pairs configured to drive a 3-phase BLDC motor, a comparator, a voltage regulator to provide bias to a companion microcontroller, power monitoring comparators, over-temperature sensor, two level translators and three operational amplifiers for motor current monitoring.

- Three half-bridge drivers configured to drive external NMOS high-side and low-side NMOS MOSFETs
- Independent input control for high-side NMOS and low-side NMOS MOSFETs
- Peak output current: 0.5 A @ 12 V
- Shoot-through protection
- Overcurrent and short-circuit protection
- Adjustable output buck regulator (750 mW)
- Fixed output linear regulators:
5 V @ 20 mA
12 V @ 20 mA
- Internal bandgap reference
- Three operational amplifiers for motor phase current monitoring and position detection
- Overcurrent comparator
- Two level translators
- Input voltage range: 6 - 40 V
- Operational voltage range: 6 - 28 V
- Under-voltage lockout (UVLO): 6 V
- Over-voltage lockout (OVLO): 28 V
- Transient (100 ms) voltage tolerance: 48 V
- Extended temperature range: TA -40 to +150°C
- Thermal shutdown
