The A3977 is a complete microstepping motor driver with built-in translator. It is designed for the operation of bipolar stepper motors
Stepper motors in full, half, quarter and eighth step operation with an output voltage of 35 V and ±2.5 A. The A3977 contains a current controller with a fixed switch-off time, which can operate in slow, fast or mixed decay mode. This current decay control
reduces audible motor noise, increases step accuracy and reduces power loss.
The translator is the key to the simple implementation of the A3977.
Key features
In stock
SKU A3977SLPTR-T

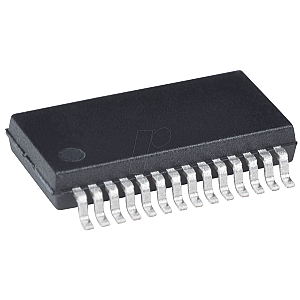

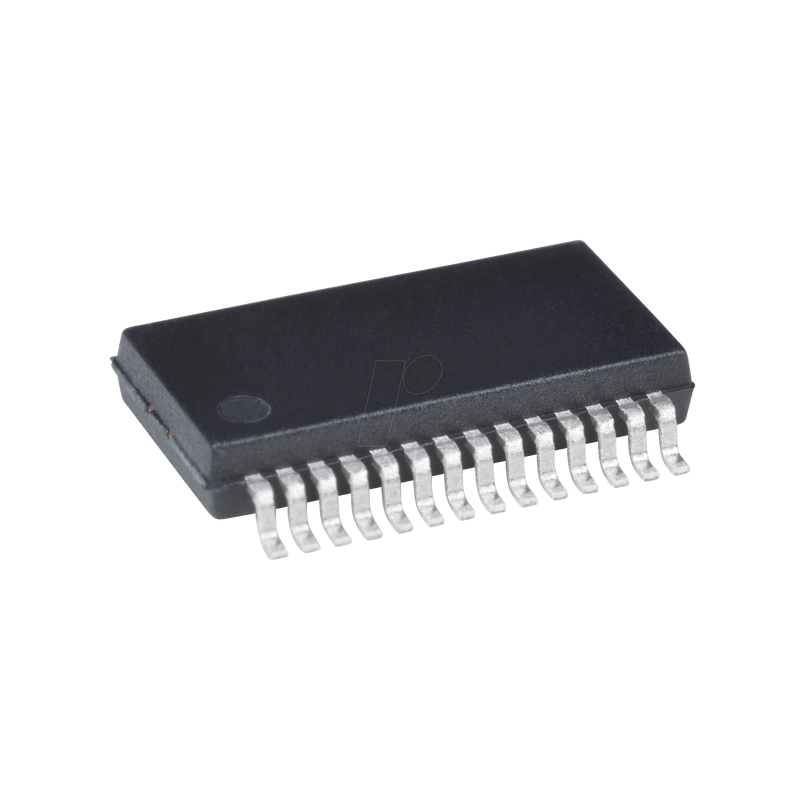

Motor driver, microstep, 2.5A/35V, TSSOP-28
MPN A3977SLPTR-T
Manufacturer ALLEGRO
€5.26
incl. 19% VAT · €4.42 excl. VAT
Package
TSSOP-28
Specifications
General
Model
DMOS Driver
Type
Motortreiber
Design
Microstepping
Mounting form
TSSOP-28
Electrical values
Supply voltage
3..5.5 VDC
Output voltage
35 V DC
Output Current
2.5 A
Supply Voltage Min.
8 V
Supply Voltage Max.
35 V
RDS(on)
280 mOhm
Manufacturer specifications
Manufacturer
ALLEGRO
Manufacturer ID
A3977SLPTR-T
Weight
5.0E-4 kg
RoHS
conform
EAN/GTIN
9900003844094
HS-Code
85423190
