Description
The TI MSP430F677x family of polyphase metering SoCs are powerful highly integrated solutions for
revenue meters that offer accuracy and low system cost with few external components. The F677x family
of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations,
metering applications such as tariff rate management, and communications with AMR and AMI modules.
The F677x devices feature TI's 24-bit sigma-delta converter technology, which provides better than 0.1%
accuracy. Family members include up to 512KB of flash, 32KB of RAM, and an LCD controller with
support for up to 320 segments.
The ultra-low-power nature of the F677x devices means that the system power supply can be minimized
to reduce overall cost. Lowest standby power means that backup energy storage can be minimized and
critical data retained longer in case of a mains power failure.
In stock
SKU MSP430F6775IPZ

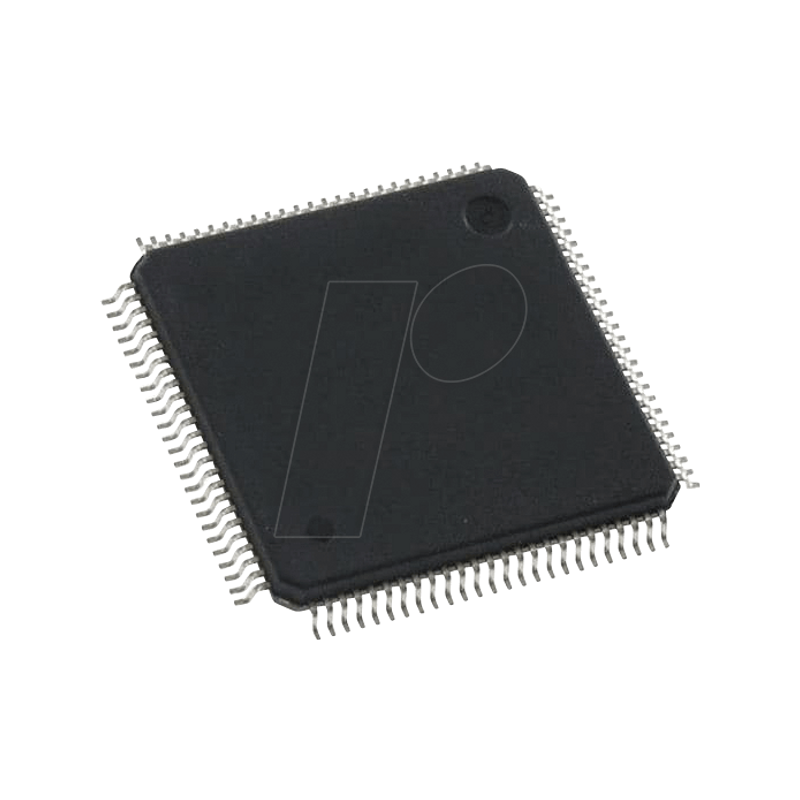

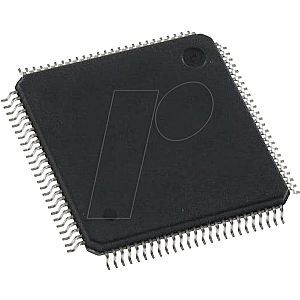

MSP430 microcontroller, 16-bit, 1.8 V, 128 KB, 25MHz, LQFP-100
MPN MSP430F6775IPZ
Manufacturer TEXAS INSTRUMENTS
€9.56
incl. 19% VAT · €8.03 excl. VAT
Package
LQFP-100
Specifications
General
Architecture
RISC
Core
MSP430
family
mixed signal
Model
Ultra-Low-Power
Mounting form
LQFP-100
Design
24-bit Sigma-Delta ADCs
Type
16-Bit Mikrocontroller
Technology
MSP430 RISC
Specials
CPU clock
25 MHz
Implementation
Memory
128
RAM
16 kByte
I/O-Pins
62
16-bit Timer
4
Internal oscillator
Yes
PWM
9
Electrical values
Supply voltage
1.8 ... 3.6 VDC
Supply Voltage Min.
1.8 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
ODC
7
I²C
2
SPI
6
UART
4
I/O/USART
4
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
MSP430F6775IPZ
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002815590
HS-Code
85423190
