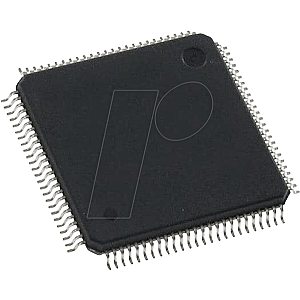

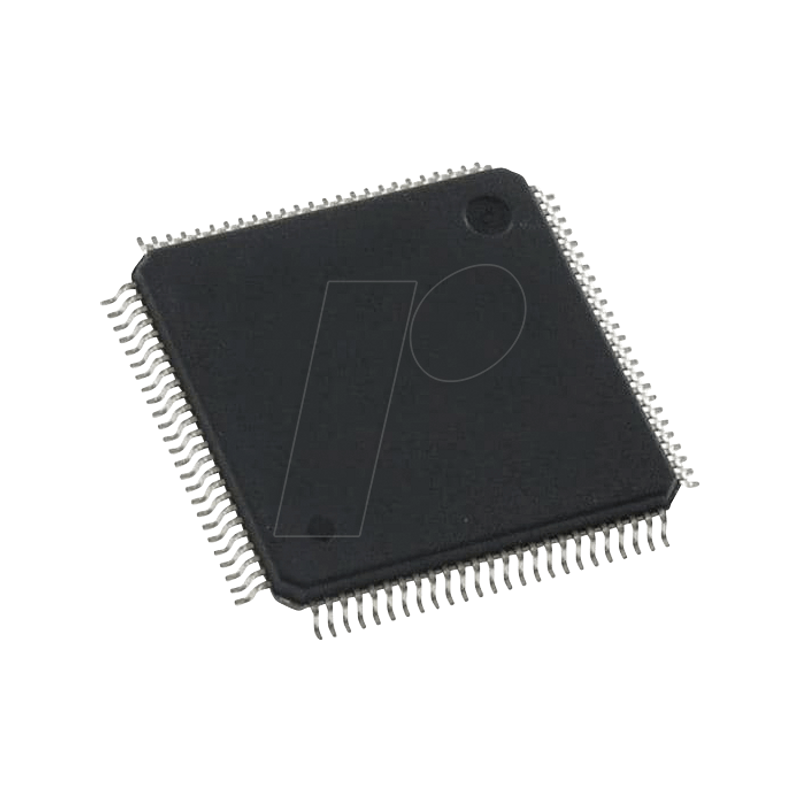

MSP430 microcontroller, 16-bit, 1.8 V, 512 KB, 20MHz, LQFP-100

Description

The TI MSP family of ultra-low-power microcontrollers consists of several devices that feature different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3 µs (typical).

The MSP430F665x and MSP430F565x series are microcontroller configurations with four 16-bit timers, a high-performance 12-bit ADC, three USCIs, a hardware multiplier, DMA, an RTC module with alarm capabilities, a comparator, USB 2.0, and up to 74 I/O pins.

Features
- Low Supply Voltage Range:
- 3.6 V Down to 1.8 V
- Ultra-Low-Power Consumption
- Active Mode (AM):
All System Clocks Active:
295 µA/MHz at 8 MHz, 3.0 V, Flash Program Execution (Typical)
- Standby Mode (LPM3):
Watchdog With Crystal, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
2.0 µA at 2.2 V, 2.2 µA at 3.0 V (Typical)
- Shutdown, Real-Time Clock (RTC) Mode (LPM3.5):
Shutdown Mode, Active RTC With Crystal:
1.1 µA at 3.0 V (Typical)
- Shutdown Mode (LPM4.5):
0.45 µA at 3.0 V (Typical)
- Wake up From Standby Mode in 3 µs (Typical)
- 16-Bit RISC Architecture, Extended Memory, up to 20-MHz System Clock
- Flexible Power-Management System
- Fully Integrated LDO With Programmable Regulated Core Supply Voltage
- Supply Voltage Supervision, Monitoring, and Brownout
- Unified Clock System
- FLL Control Loop for Frequency Stabilization
- Low-Power Low-Frequency Internal Clock Source (VLO)
- Low-Frequency Trimmed Internal Reference Source (REFO)
- 32-kHz Crystals (XT1)
- High-Frequency Crystals up to 32 MHz (XT2)
- Four 16-Bit Timers With 3, 5, or 7 Capture/Compare Registers
- Three Universal Serial Communication Interfaces (USCIs)
- USCI_A0, USCI_A1, and USCI_A2 Each Support:
Enhanced UART With Automatic Baud-Rate Detection
IrDA Encoder and Decoder
Synchronous SPI
- USCI_B0, USCI_B1, and USCI_B2 Each Support:
I2C
Synchronous SPI
- Full-Speed Universal Serial Bus (USB)
- Integrated USB-PHY
- Integrated 3.3-V and 1.8-V USB Power System
- Integrated USB-PLL
- Eight Input and Eight Output Endpoints
- 12-Bit Analog-to-Digital Converter (ADC) With Internal Shared Reference, Sample-and-Hold, and Autoscan Feature
- Two 12-Bit Digital-to-Analog Converters (DACs) With Synchronization
- Voltage Comparator
- Integrated LCD Driver With Contrast Control for up to 160 Segments
- Hardware Multiplier Supports 32-Bit Operations
- Serial Onboard Programming, No External Programming Voltage Needed
- Six-Channel Internal DMA
- RTC Module With Supply Voltage Backup Switch
