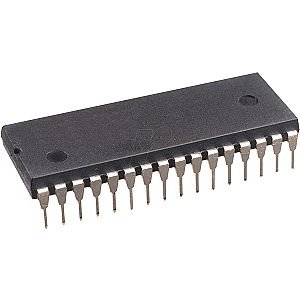

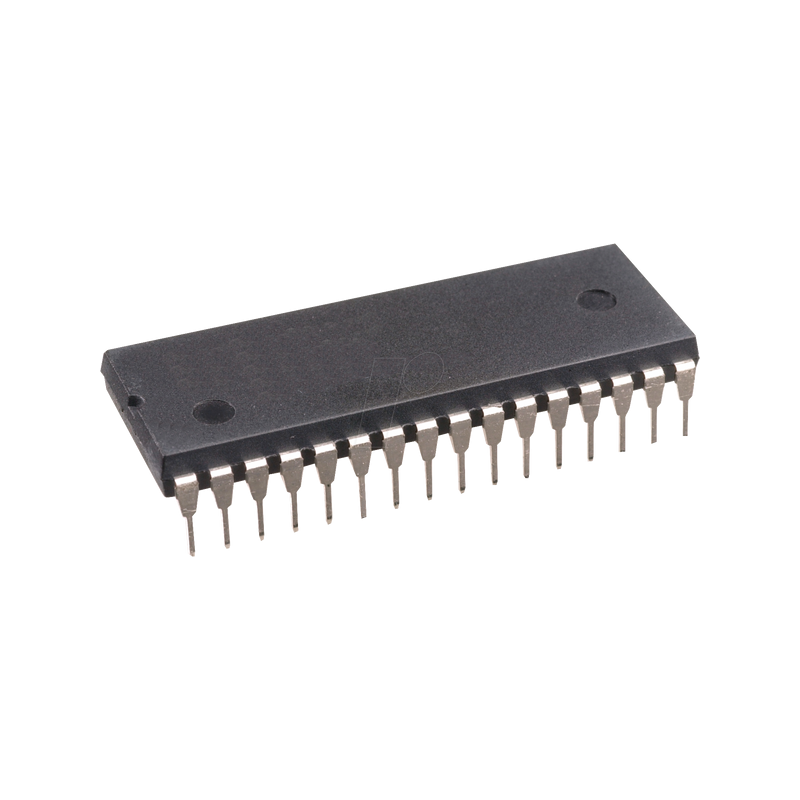

Multi-NOR flash memory, 4 Mb (512 K x 8), 5 V, DIP-32

Description

The SST39SF010A / 020A / 040 is a CMOS Multipurpose Flash (MPF) manufactured using SST's proprietary high performance CMOS SuperFlash technology. The split gate cell design and the thick oxide tunnel injector achieve better reliability and manufacturability compared to alternative approaches. The SST39SF010A / 020A / 040 devices write (program or delete) with a 4.5-5.5 V power supply.
The SST39SF010A / 020A / 040 devices correspond to the JEDEC standard pin assignments for x8 memories.
The SST39SF010A / 020A / 040 devices offer a powerful byte program and a maximum byte program time of 20 µs.
These devices use Toggle Bit or Data # Polling to indicate the completion of the programming process.
They have built-in hardware and software data protection schemes to protect against accidental writing.
These devices have been designed, manufactured and tested for a wide range of applications and offer a guaranteed typical life of 100,000 cycles.
Data retention is estimated at more than 100 years.

Features & Benefits
- Organized as 128K x8 / 256K x8 / 512K x8

- Single 4.5-5.5V read and write operations

- Superior reliability
- Lifetime: 100,000 cycles (typical)
- More than 100 years of data retention

- Low power consumption (typical values at 14 MHz)
- Active current: 10 mA (typical)
- Standby current: 30 µA (typical)

- sector erase functionality
- Uniform 4 KByte sectors

- Fast read access time:
- 70 ns

- Stored address and data

- Automatic write timing
- Internal VPP generation

- Fast erase and byte program
- Sector clear time: 18 ms (typical)
- Chip erase time: 70 ms (typical)
- Byte programming time: 14 µs (typical)
- Chip rewrite time:
2 seconds (typical) for SST39SF010A
4 seconds (typical) for SST39SF020A
8 seconds (typical) for SST39SF040

- End of write detection
- Toggle Bit
- data retrieval

- TTL I/O compatibility

- JEDEC standard
- Flash EEPROM pin assignment and instruction sets

- Available housings
- PLCC with 32 connectors
- TSOP with 32 connections (8 mm x 14 mm)
- 32-pole PDIP

- All components are RoHS compliant
