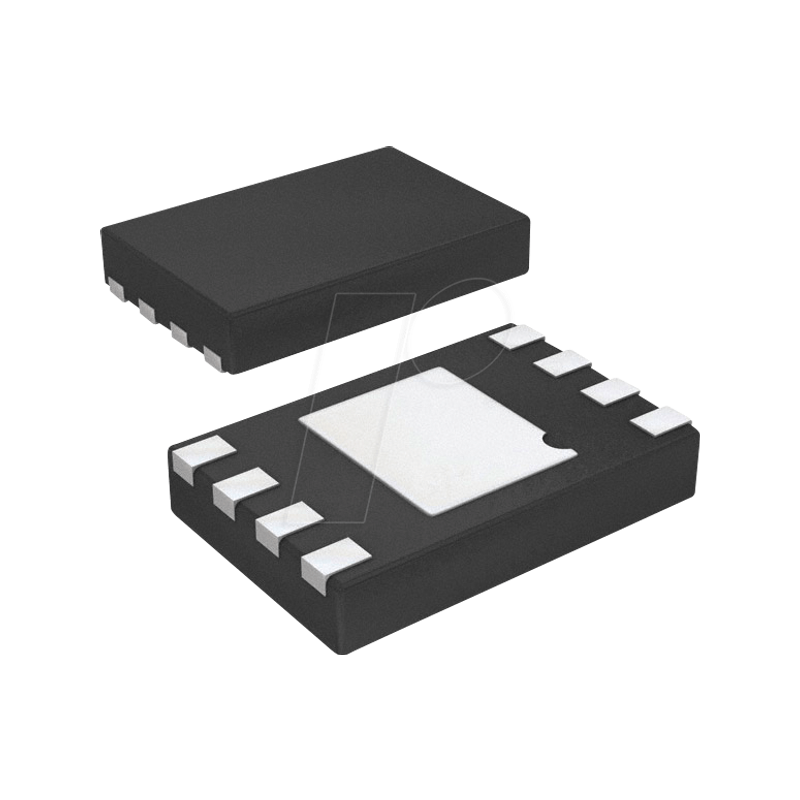

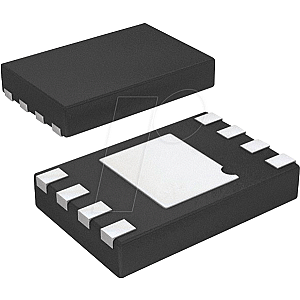

NOR flash memory 8 Mb, 2.7V, serial, 100MHz, UDFN-8

Flash memory, Serial-NOR, 8 Mbit, SPI, UDFN-8, 100Mhz

Characteristics:

- Single 2.7V - 3.6V supply

- Serial peripheral interface (SPI) compatible
- Supports SPI modes 0 and 3
- Supports the operation of RapidS™
- Supports Dual Input Program and Dual Output Reading

- Very high operating frequencies
- 100MHz for RapidS
- 85MHz for SPI
- Clock-to-Output (tV) of maximum 5ns Maximum

- Flexible, optimized deletion architecture for code and data storage applications
- Uniform 4-Kbyte block deletion
- Uniform 32-KByte block deletion
- Uniform 64-KByte block deletion
- Complete chip deletion

- Individual sector protection with Global Protect/Unprotect functionality
- 16 sectors with 64 KByte content each

- Hardware controlled locking of protected sectors via WP pin
- sector barrier

- Create any combination of 64-Kbyte sectors that are permanently write-protected

- 128 byte programmable OTP security register

- Flexible programming
- Byte/page program (1- to 256-byte)

- Fast program and delete times
- 1.0ms Typical page program (256 bytes) Time expenditure
- 50 ms Typical 4-KByte block clearing time
- 250 ms Typical 32-KByte block clearing time
- 400 ms Typical 64-KByte block clearing time

- Automatic checking and reporting of Erase/Program errors

- Software controlled reset

- JEDEC Standard Manufacturer and Device ID Reading Methodology

- Low power dissipation
- 5mA active reading current (typical at 20MHz)
- 5µA Deep Power-Down Current (typical)

- Lifetime: 100,000 program/erase cycles

- Data storage: 20 years

- Corresponds to the entire industrial temperature range

- Industry standard Green (Pb/Halide-Free/RoHS compliant) Package options
- 8-channel SOIC (150-mil and 208-mil wide)
- 8-pole, ultra-thin DFN (5 x 6 x 0.6 mm)
