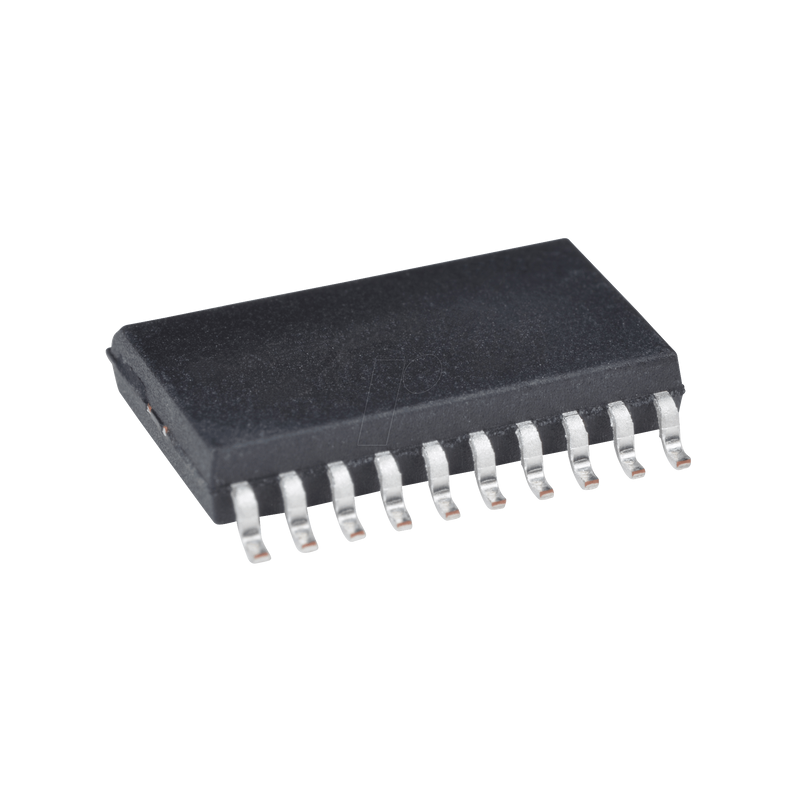

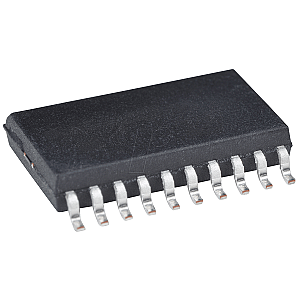

Octal buffer/line driver, 3-state, inverting, SO-20

74HC540; 74HCT540 Octal buffer/line driver; 3-state; inverting

General description
The 74HC540; 74HCT540 is an 8-bit inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features and benefits
- Inverting outputs
- Complies with JEDEC standard no. 7A
- Input levels:
- For 74HC540: CMOS level
- For 74HCT540: TTL level
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
