74HC273; 74HCT273
Octal D-type flip-flop with reset; positive-edge trigger
Description:
The 74HC273; 74HCT273 is an octal positive-edge triggered D-type flip-flop. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR forces the outputs LOW independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Features:
- Input levels:
- For 74HC273: CMOS level
- For 74HCT273: TTL level
- Common clock and master reset
- Eight positive edge-triggered D-type flip-flops
- Complies with JEDEC standard no. 7A
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
In stock
SKU SMD HC 273

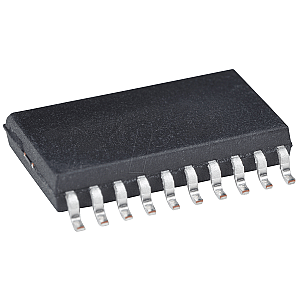

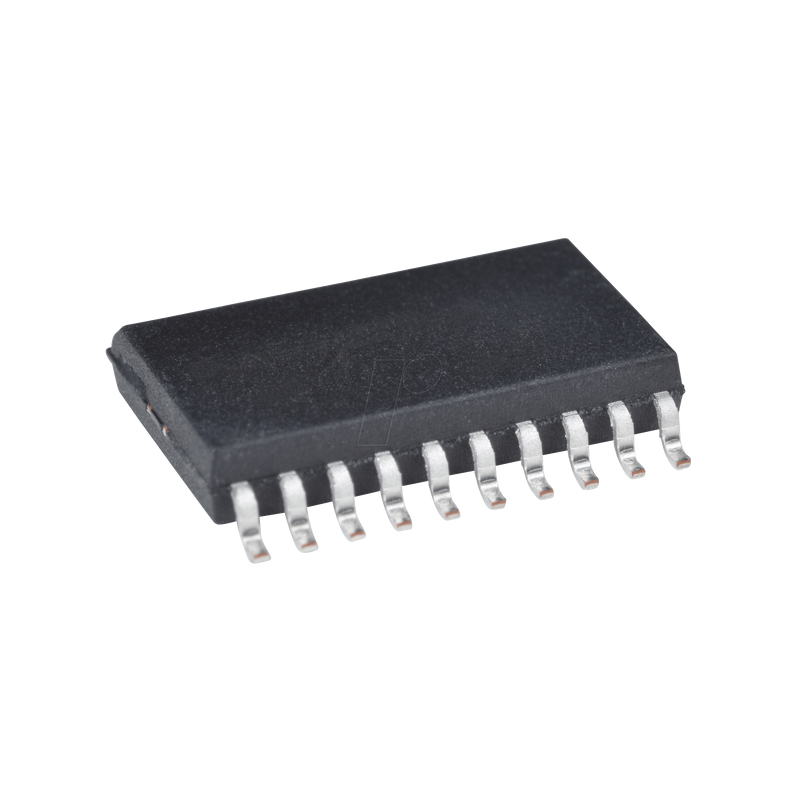

Octal D flip-flop with reset, pos. edge, 20 MHz, SO-20
MPN 74HC273
Manufacturer PHILIPS
€0.31
incl. 19% VAT · €0.26 excl. VAT
Package
SO-20
Specifications
General
family
74HC
Model
Flip-Flop
Type
3 inputs
Design
D-type
Mounting form
SO-20
Other
Temperature range
-40 ... +85
Electrical values
Supply voltage
2.0 ... 6.0 VDC
Input voltage
0 ... 6.0 VDC
Performance
500 mW
Input voltage ViH
4.2 VDC
Input voltage ViL
0.5 VDC
Measuring range
Frequency
20 MHz
Manufacturer specifications
Manufacturer
PHILIPS
Manufacturer ID
74HC273
Weight
2.0E-4 kg
RoHS
conform
EAN/GTIN
9900000186685
HS-Code
85423990
