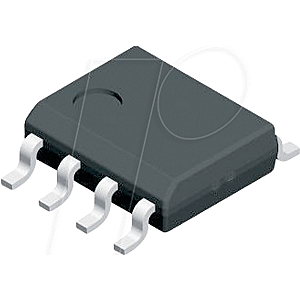

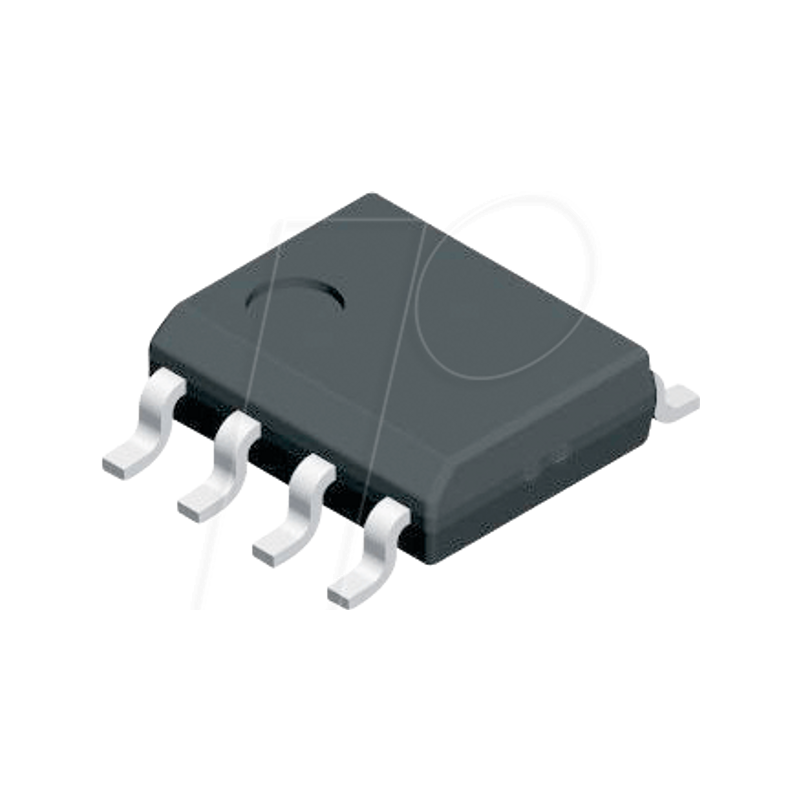

Op-Amp R-to-R, 325MHz, 140V/us, SO8

The LT®1806/LT1807 are single/dual low noise rail-to-rail input and output unity-gain stable op amps that feature a 325MHz gain-bandwidth product, a 140V/µs slew rate and a 85mA output current. They are optimized for low voltage, high performance signal conditioning systems. The LT1806/LT1807 have a very low distortion of -80dBc at 5MHz, a low input referred noise voltage of 3.5nV/vHz and a maximum offset voltage of 550µV that allows them to be used in high performance data acquisition systems. The LT1806/LT1807 have an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications. The LT1806/LT1807 maintain their performance for supplies from 2.5V to 12.6V and are specifi ed at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The LT1806 is available in an 8-pin SO package with the standard op amp pinout and a 6-pin TSOT-23 package. The LT1807 features the standard dual op amp pinout and is available in 8-pin SO and MSOP packages.These devices can be used as plug-in replacements for many op amps to improve input/output range and performance.

Features
- gain-Bandwidth Product: 325MHz
- slew Rate: 140V/µs
- wide Supply Range: 2.5V to 12.6V
- large Output Current: 85mA
- low Distortion, 5MHz: -80dBc
- low Voltage Noise: 3.5nV/vHz
- input Common Mode Range Includes Both Rails
- output Swings Rail-to-Rail
- input Offset Voltage (Rail-to-Rail): 550µV Max
- common Mode Rejection: 106dB Typ
- power Supply Rejection: 105dB Typ
- unity-Gain Stable
- power Down Pin (LT1806)
- operating Temperature Range: - 40°C to 85°C
- single in SO-8 and 6-Pin Low Profi le (1mm) ThinSOT™ Packages
- dual in SO-8 and 8-Pin MSOP Packages

Applications
- low Voltage, High Frequency Signal Processing
- driving A/D Converters
- rail-to-Rail Buffer Amplifi ers
- video Line Driver
- active Filters
