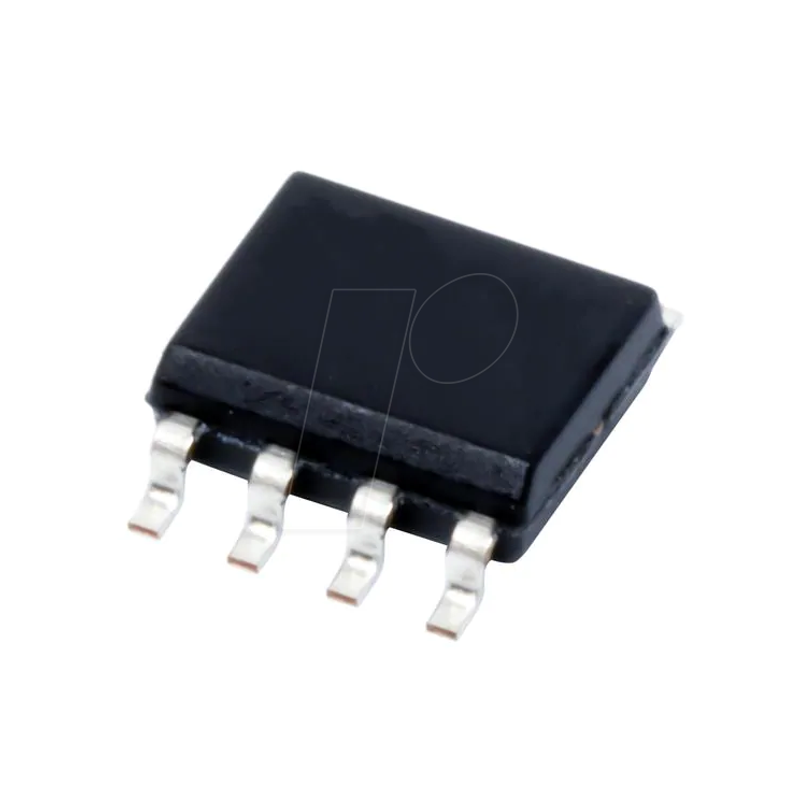

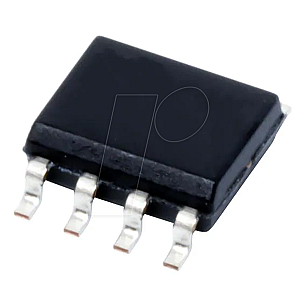

Operational amplifier, 1-fold, 0.04 V/µs, 100 kHz, SO-8

TS271CD , CMOS Programmable Low Power Single Operational Amplifier

Description
The TS271 is a low cost, low power single operational amplifier designed to operate with single or dual supplies. This operational amplifier uses the ST silicon gate CMOS process giving it an excellent consumption-speed ratio. This amplifier is ideally suited for low consumption applications. The power supply is externally programmable with a resistor connected between pins 8 and 4. It allows to choose the best consumption-speed ratio and supply current can be minimized according to the required speed. This device is specified for the following ISET current values: 1.5µA, 25µA, 130µA. This CMOS amplifier offers very high input impedance and extremely low input currents.

Features
- Three input offset voltage selections
- Stable and low offset voltage
- Offset null capability (by external compensation)
- Consumption current and dynamic parameters are stable regarding the voltage power supply variations
- Dynamic characteristics adjustable ISET
- Very large ISET range
- Output voltage can swing to ground
