The operational amplifier MCP6V51 uses a dynamic offset correction for very low offset and offset drift.
The OP has a gain bandwidth product of 2 MHz (typical). It is uniformly stable, has virtually no 1/f noise and an excellent Power Supply Rejection Ratio (PSRR) and Common Mode Rejection Ratio (CMRR).
The MCP6V51 operates from a single supply voltage that can range from 4.5V to 45V (±2.25V to ±22.5V) and has a quiescent current of 470 µA (typical).
The MCP6V51 operational amplifier is offered as a single-channel amplifier and is equipped with an advanced CMOS process.
attributes
o High DC precision:
In stock
SKU MCP 6V51T-E/OT

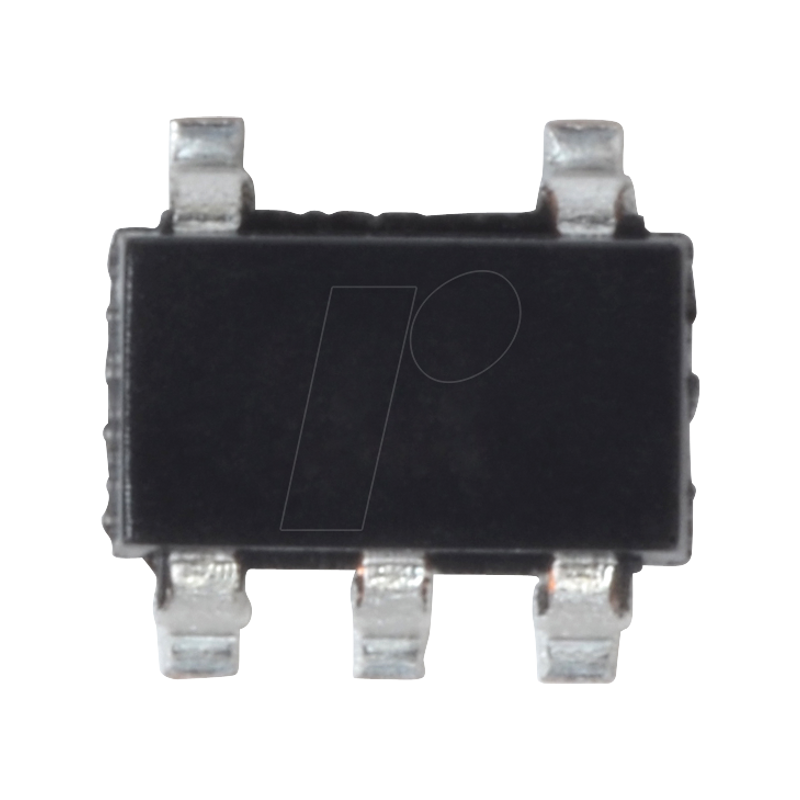

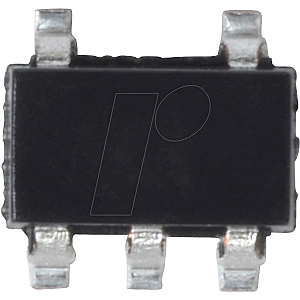

Operational amplifier, 1-fold, 2MHz,1.2V/µs, SOT-23-5
MPN MCP6V51T-E/OT
Manufacturer MICROCHIP
€2.87
incl. 19% VAT · €2.41 excl. VAT
Package
SOT-23-5
Specifications
General
Type
Operationsverstärker
Model
Operational amplifier
Channels
1
Mounting form
SOT-23-5
Other
Temperature range
-40..+125
Electrical values
Supply voltage
4.5 ... 45 VDC
Frequency
2 MHz
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP6V51T-E/OT
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900002523112
HS-Code
85423390
