These circuits consist of two independent, high-amplification, internally frequency compensated operational amplifiers specifically designed to operate on a single power supply over a wide voltage range. The low-power drain is independent of the level of the supply voltage.
Applications include transducer amplifiers, DC gain blocks, and all conventional operational amplifier circuits that are now easier to implement in single-power systems. For example, these circuits can be supplied directly with the usual 5 V, which are used in logic systems and provide the required interface electronics without any additional power supply.
Key features
In stock
SKU LM258D

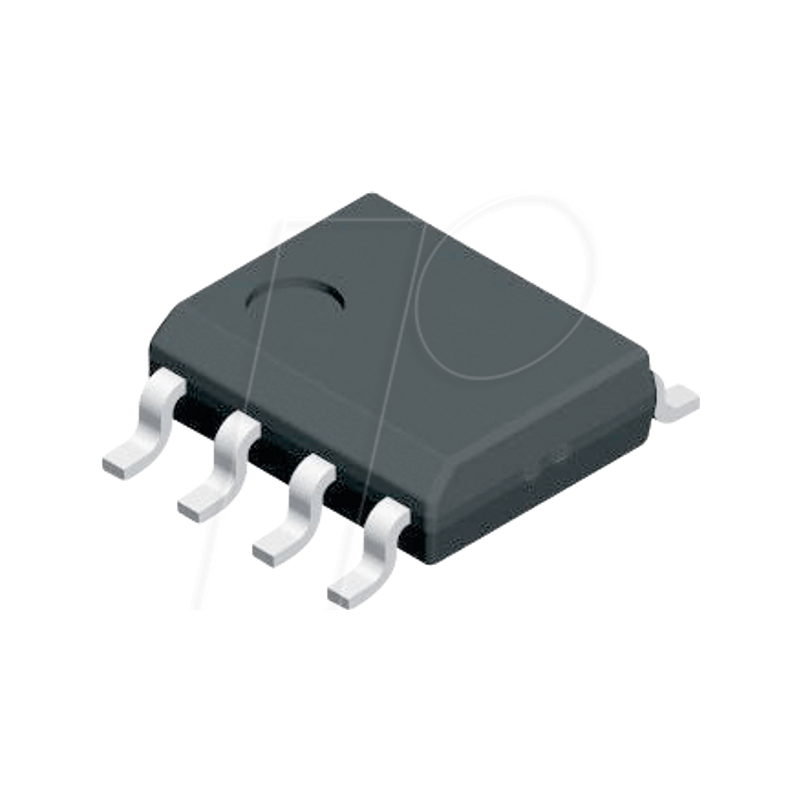

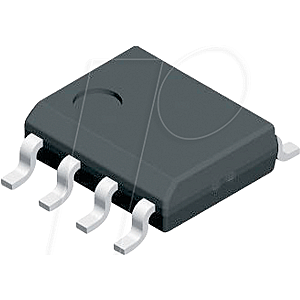

Operational Amplifier, 2x, ±15V/30V, SO-8
MPN LM258D
Manufacturer STMICROELECTRONICS
€0.31
incl. 19% VAT · €0.26 excl. VAT
Package
SO-8
Specifications
General
Type
Operationsverstärker
Model
Operational amplifier
Channels
2
Mounting form
SO-8
Other
Temperature range
-40..105
Electrical values
Input voltage
Vcc+1.5 VDC
Suppley Voltage Rejection
65 dB
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
LM258D
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900003536104
HS-Code
85423990
