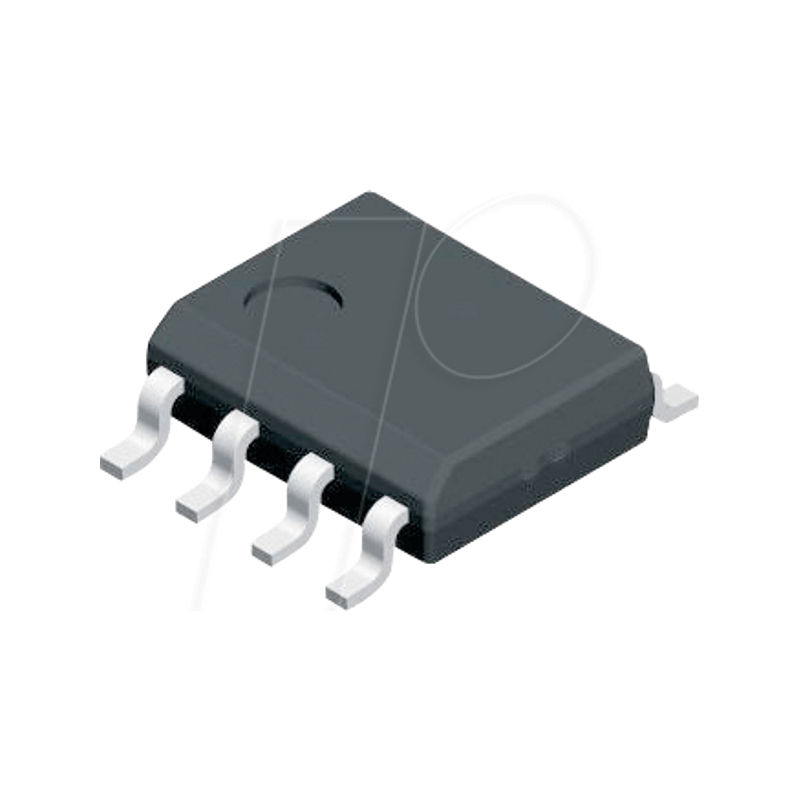

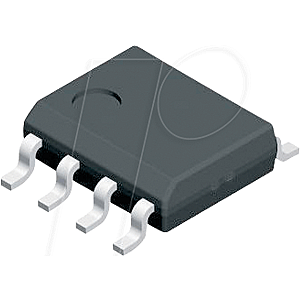

Operational amplifier, single, 10MHz, 13 V/µs, SO-8

Low-Noise Operational Amplifiers

Description
The NE5534 are monolithic high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output drive capability, high unitygain and maximum-output-swing bandwidths, low distortion, and high slew rate. These operational amplifiers are internally compensated for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature inputprotection diodes, output short-circuit protection, and offset-voltage nulling capability. The NE5534 and NE5534A are characterized for operation from 0°C to 70°C.

Features:
- Equivalent Input Noise Voltage 3.5 nV//Hz
- Unity-Gain Bandwidth . . . 10 MHz Typ
- Common-Mode Rejection Ratio 100 dB Typ
- High DC Voltage Gain . . . 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing 32 V Typ With Vcc± = ±18 V and Rl = 600 R
- High Slew Rate . . . 13 V/µs Typ
- Wide Supply Voltage Range ±3 V to ±20 V
- Low Harmonic Distortion
