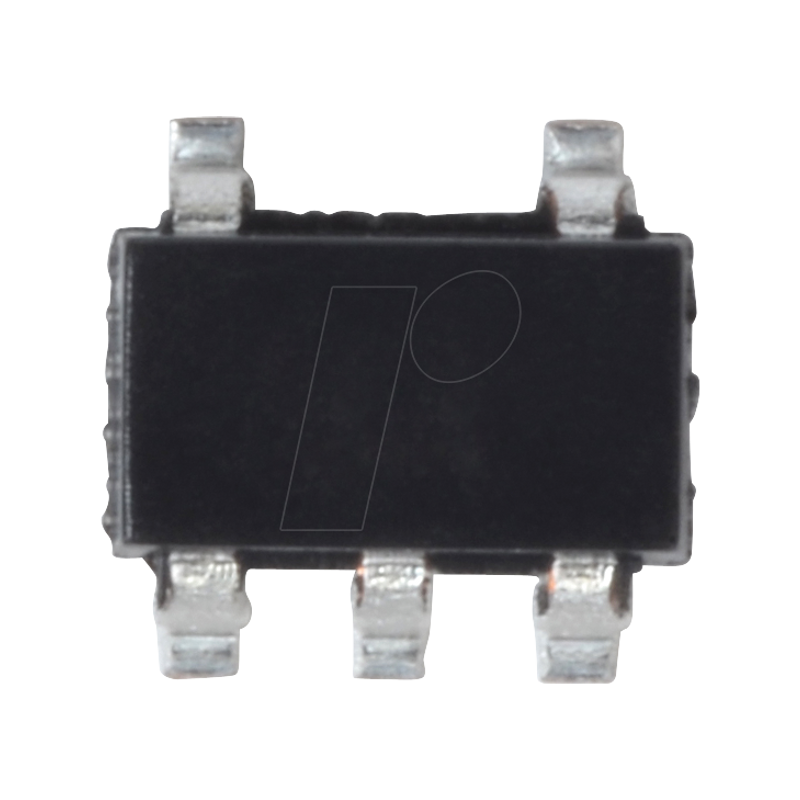

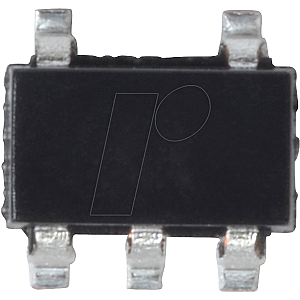

Operational Amplifier,1x, 0.09 MHz, 0.4 V/µs,SOT-23-5

Beyond-the-Rails Op Amps

The MAX4240-MAX4244 family of micro-power operational amplifiers
Work with a single supply voltage of +1.8V to +5.5V or two
±0.9V to ±2.75V and have Beyond-the-Rails™
Inputs and rail-to-rail output functions. These amplifiers
Provide a gain bandwidth of 90 kHz and
Consume only 10µA supply current per amplifier. That
MAX4241/MAX4243 have a power-saving shutdown mode
Which reduces the supply current to less than 1µA and the
Forces the output to a high-resistance state. Although that
Operating voltage is specified at +1.8V, these operate
These devices typically operate at up to +1.5 V. the combination
From ultra-low-voltage operation, beyond-the-rails
Inputs, rail-to-rail outputs and extremely low power consumption
Makes these building blocks ideal for all portable/
Two-cell battery-powered systems.
