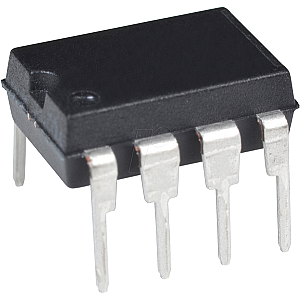

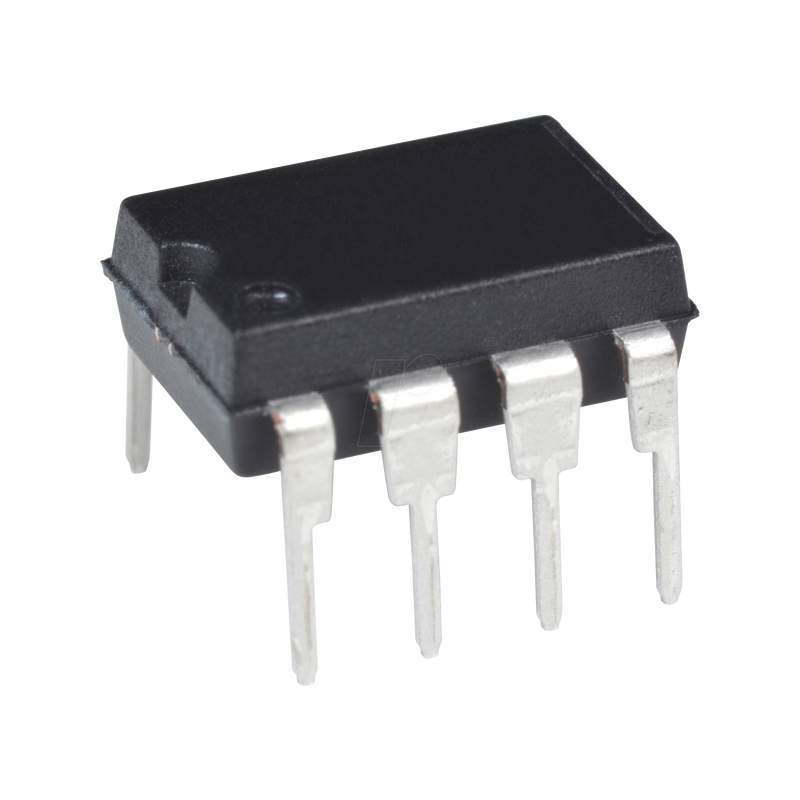

Operational Amplifier,1x, 2.8 MHz, 2.3 V/µs,DIP-8

CMOS Op Amps

Microchip Technology Inc. MCP601/1R/2/3/4
Family of Low Power Operational Amplifiers (OR Amps)
Are available as single (MCP601), single with chip select
(CS) (MCP603), Dual (MCP602), and Quad (MCP604)
Configurations offered. These operational amplifiers use an advanced
CMOS technology that provides a low bias current, high speed
High-speed operation, high open loop gain and rail-to-rail
Output stroke. This product offering works with a
A single supply voltage, which can be up to 2.7 V, and
230 µA (typical) quiescent current per amplifier
Amplifier. In addition, the common mode input voltage range is sufficient
Common mode input voltage of 0.3 V below ground, which makes this
Amplifiers are ideal for operation with a single supply voltage.

Key features
