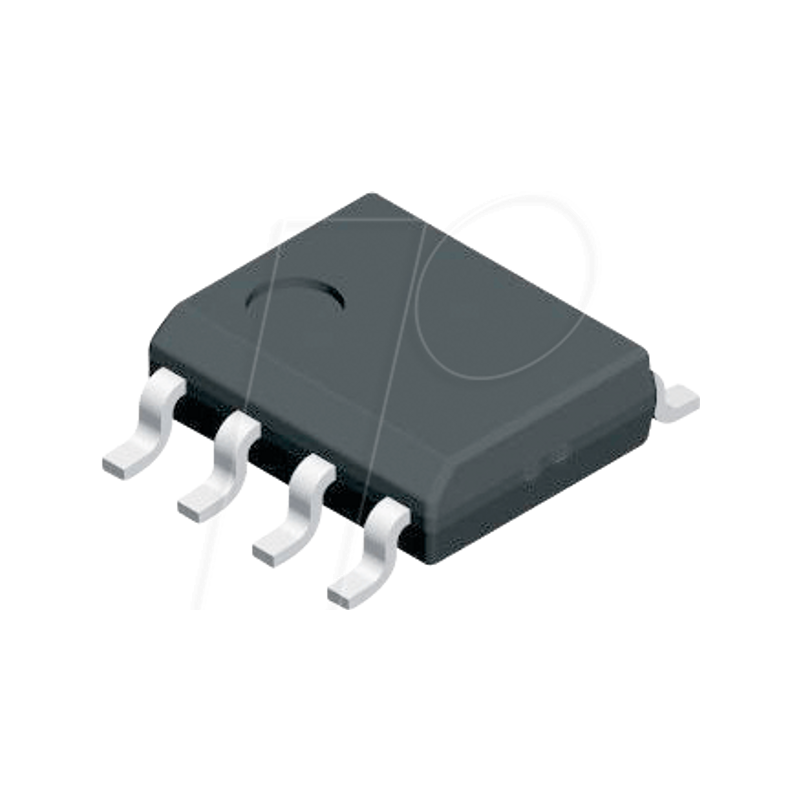

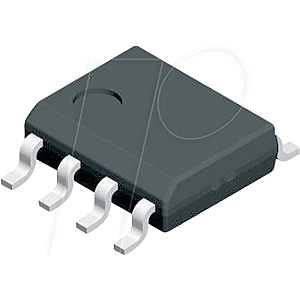

Operational Amplifier,1x, 420 MHz, 6500 V/µs,SOIC-8

420 MHz Current Feedback Amplifier

The THS3001 is a high-speed power feedback operational amplifier ideal for communications, imaging and high-quality video applications. This device offers a very fast rise rate of 6500 V/µs, a bandwidth of 420 MHz and 40-ns transient time for large signal applications that require excellent transient response. In addition, the THS3001 operates with a very low distortion of -96 dBc, making it well suited for applications such as wireless communication base stations or ultra-fast ADC or DAC buffers.

Key features
• Drives up to 100 mA
• Outstanding video performance:
– 115 MHz bandwidth (0.1 dB, G = 2)
– 0.01% differential gain
– 0.02° differential phase
• Low distortion
– THD = –96 dBc at f = 1 MHz
– THD = –80 dBc at f = 10 MHz
