Operationsverstärker,1-fach, 1 MHz, 0,5 V/µs,SOT-23-5

The LMV321/LMV324/LMV358 family (single, dual, and quad) answers the need for
low cost, general-purpose operational amplifiers. They operate with voltages as low
as 2.7 V and feature both input and output rail-to-rail, 145 µA consumption current,

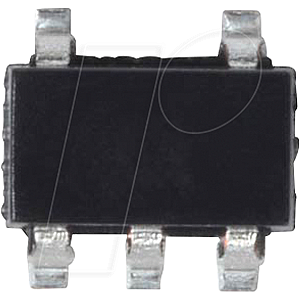

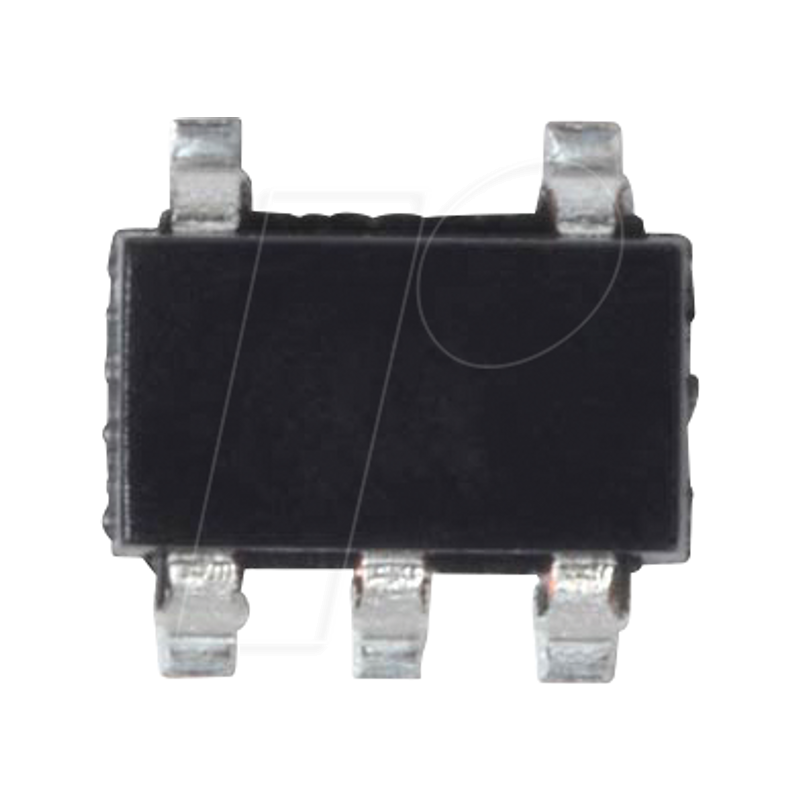

and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.

Features
- operating range from VCC = 2.7 to 6 V
- extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
- rail-to-rail input and output
- low supply current (145 µA)
- ESD tolerance (2 kV)
- gain bandwidth product (1 MHz)

Applications
- battery powered electronic equipment
- personal medical care (glucose meters)
- laptops
