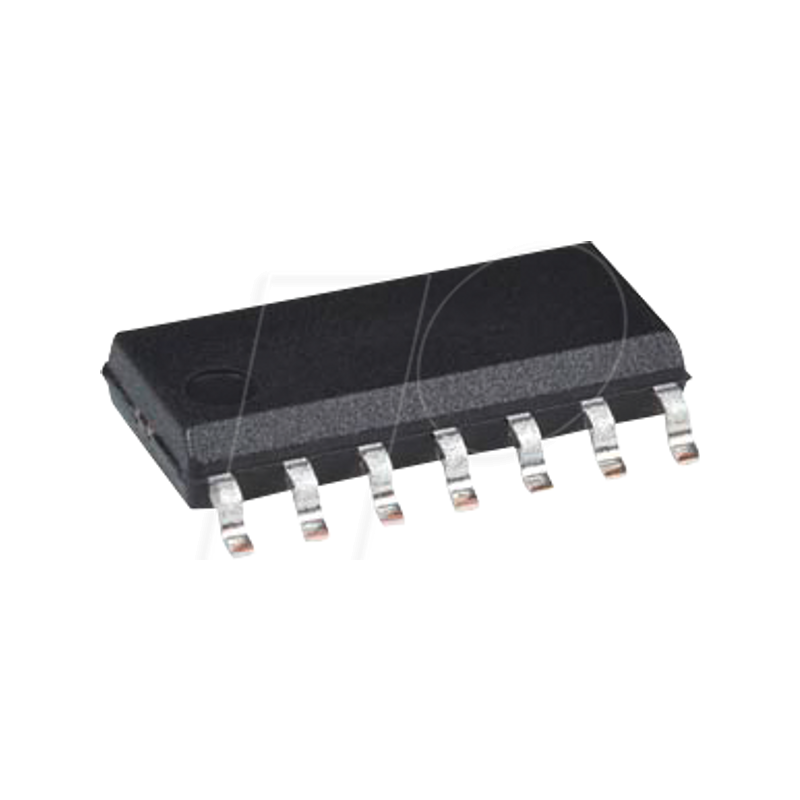

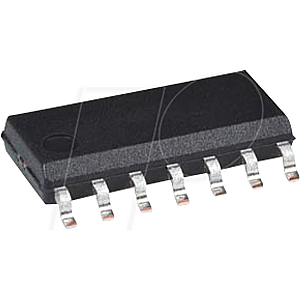

Operationsverstärker,4-fach, 1,3 MHz, 0,45 V/µs,SOIC-14

The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 µA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.

Features
- operating range from VCC = 2.7 to 6 V
- rail-to-rail input and output
- extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
- low supply current (145 µA)
- gain bandwidth product (1 MHz)
- ESD tolerance (2 kV)

Applications
- Personal medical supplies (glucose meters)
- Battery-powered electronic devices
- Laptops

Related products
- see LMV321L, LMV358L, LMV324L for newer technology versions
- see TSV851, TSV852, TSV854 for improved performance
