The AP2146 and AP2156 are integrated high-side power switches optimised for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time on the open-drain lockout flag to prevent false overcurrent reporting without requiring any external components.
In stock
SKU AP2156SG-13

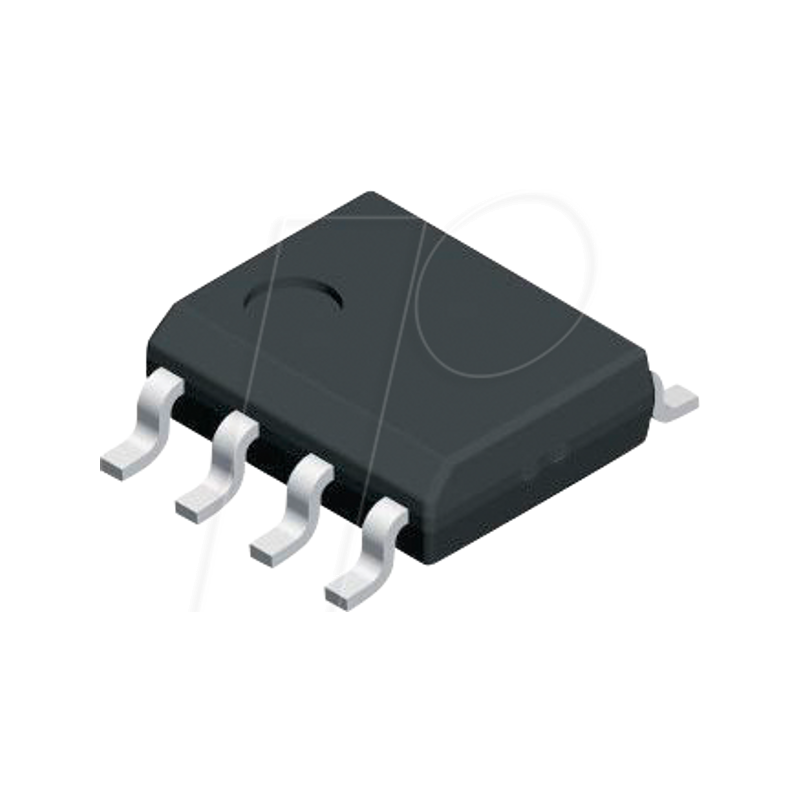

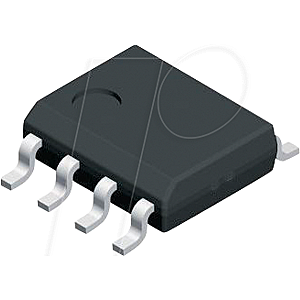

Power switch, high side, USB, active high, SO-8
MPN AP2156SG-13
Manufacturer DIODES INCORPORATED
€0.95
incl. 19% VAT · €0.80 excl. VAT
Package
SO-8
Specifications
General
Model
USB
Type
Power Switch
Design
High Side
Mounting form
SO-8
Electrical values
Supply voltage
5 VDC
Measuring range
Resistor
0.09 Ohm
Manufacturer specifications
Manufacturer
DIODES INCORPORATED
Manufacturer ID
AP2156SG-13
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003868229
HS-Code
85423990
