The LM336Z5 integrated circuit is a precision 5.0V shunt regulator. The monolithic IC voltage reference operates as a 5.0V zener with a low temperature coefficient and a dynamic impedance of 0.6 Ohm. A third terminal on the LM336Z5 allows the reference voltage and temperature coefficient to be easily adjusted.
The LM336Z5 can be used as a precise 5.0V low voltage reference, making it convenient to obtain a stable low voltage power supply. Since the LM336Z5 acts as a shunt regulator, you can also use this as a positive or negative voltage reference.
features

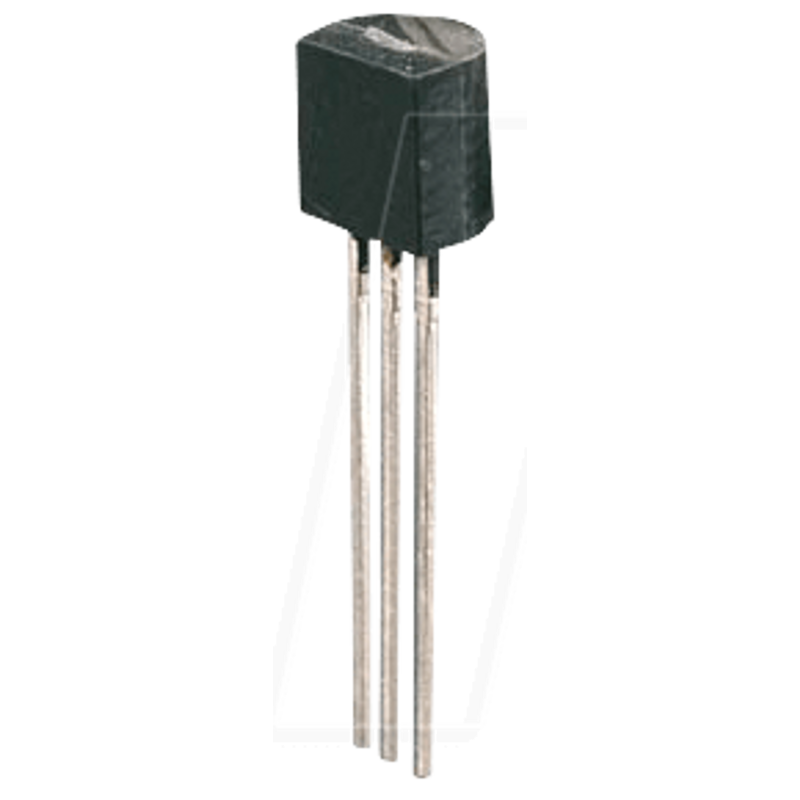

Programmable shunt regulator, 5 V, TO-92
€0.83LM 336-Z5,0
Technical information
| General | |
|---|---|
| Type | shunt diode |
| Model | Voltage reference |
| Mounting form | TO-92 |
| Electrical values | |
| Output voltage | 5 V DC |
| Other | |
| Temperature range | 0...+70 |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | LM336-Z5,0 |
| Weight | 2.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900000104719 |
| HS-Code | 85423990 |
