Regulating pulse width modulator

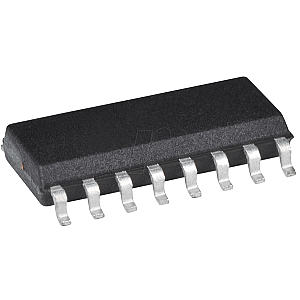

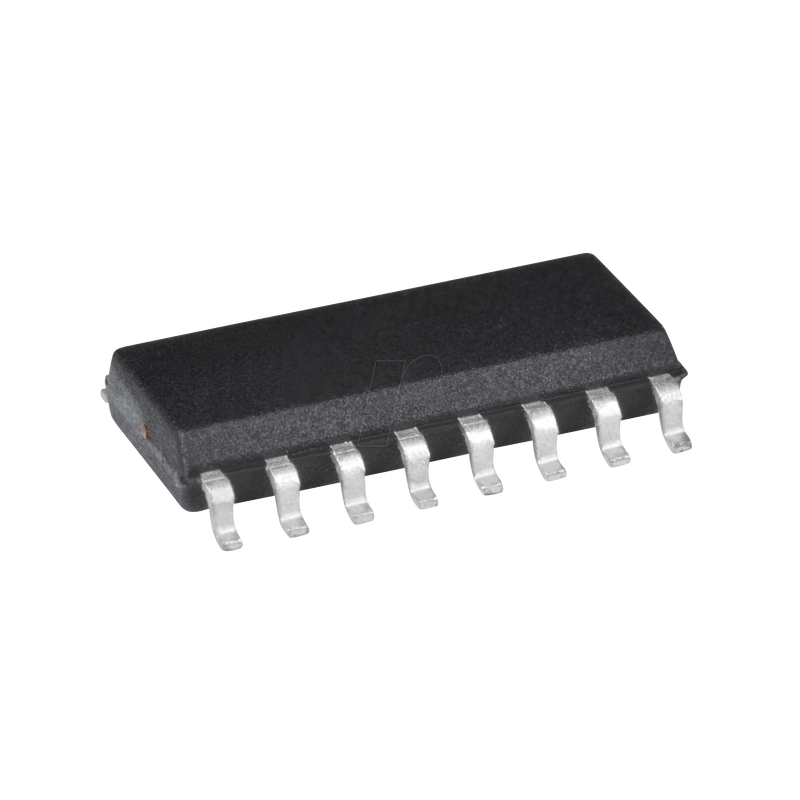

Housing: SO-16
In stock
SKU SG 3524 D SMD
PWM controller, 1-fold, 8 ... 35 V, 5 V, SO-16
MPN SG3524D
Manufacturer TEXAS INSTRUMENTS
€0.60
incl. 19% VAT · €0.50 excl. VAT
Package
SO-16
Specifications
General
Type
PWM
Model
Switching controller
Design
Controlling pulse width modulator
Mounting form
SO-16
Measuring range
Frequency
350 kHz
Electrical values
Output Current
0.1 A
Supply voltage
40 VDC
Output voltage
5 V DC
Frequency range
300 k Hz
Other
Temperature range
0 ... +70
Measures
Width
7.1 mm
Height
5.1 mm
Length
20 mm
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
SG3524D
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900000188375
HS-Code
85423990
Safety information
Responsible person for the EU
Economic operator established in the EU, who ensures that the product complies with the required regulations:
Texas Instruments Deutschland GmbH
Haggertystr. 1
85356 Freising, DE
[email protected]
https://www.ti.com
