Quadruple 2-Input Positive-NAND Gates
Description:
The SNx4xx00 devices contain four independent, 2-input NAND gates. The devices perform the Boolean function Y = A .Bor Y = A + B in positive logic.
Features:
- Package Options Include:
- Plastic Small-Outline (D, NS, PS)
- Standard Plastic(N)
- Also Available as Dual 2-Input Positive-NAND Gate in Small-Outline (PS) Package
- Inputs Are TTL Compliant; VIH = 2 V and VIL = 0.8 V
- Inputs Can Accept 3.3-V or 2.5-V Logic Inputs
In stock
SKU SMD LS 00

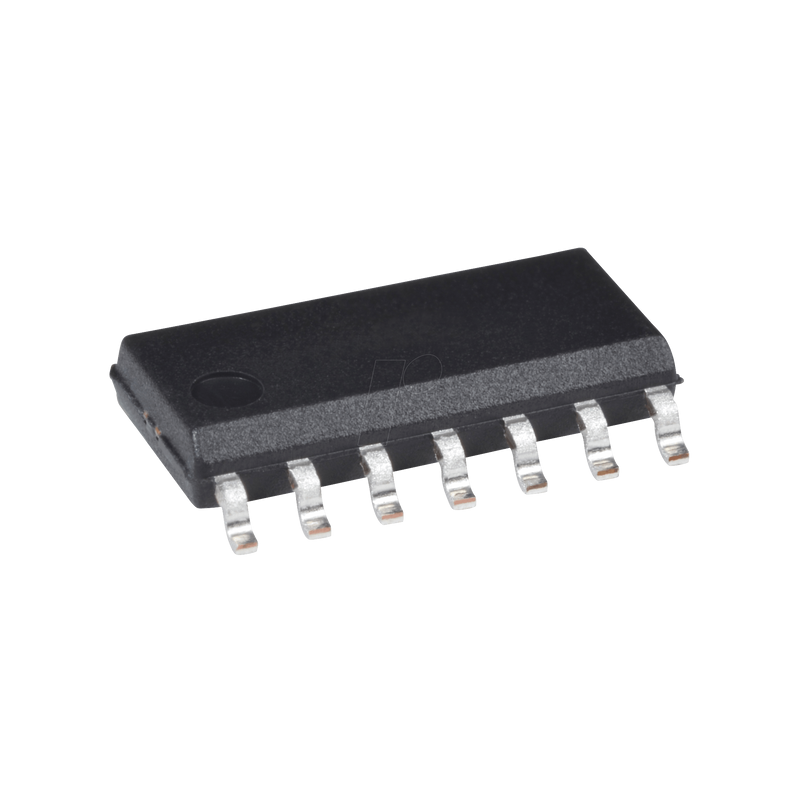

Quadruple 2-input positive NAND gate, SO-14
MPN SN74LS00D
Manufacturer TEXAS INSTRUMENTS
€1.50
incl. 19% VAT · €1.26 excl. VAT
Package
SO-14
Specifications
General
family
74LS
Model
NAND-Gate
Type
74LS00
Design
Low-power Schottky
Mounting form
SO-14
Other
Temperature range
-20 ... +75
Electrical values
Supply voltage
4.75 ... 5.25 VDC
Performance
400 mW
Input voltage ViH
2 VDC
Input voltage ViL
0.8 VDC
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
SN74LS00D
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900000187187
HS-Code
85423990
