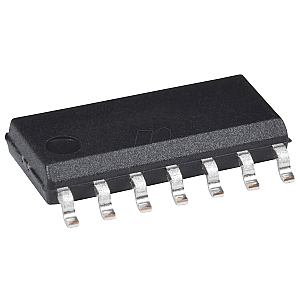

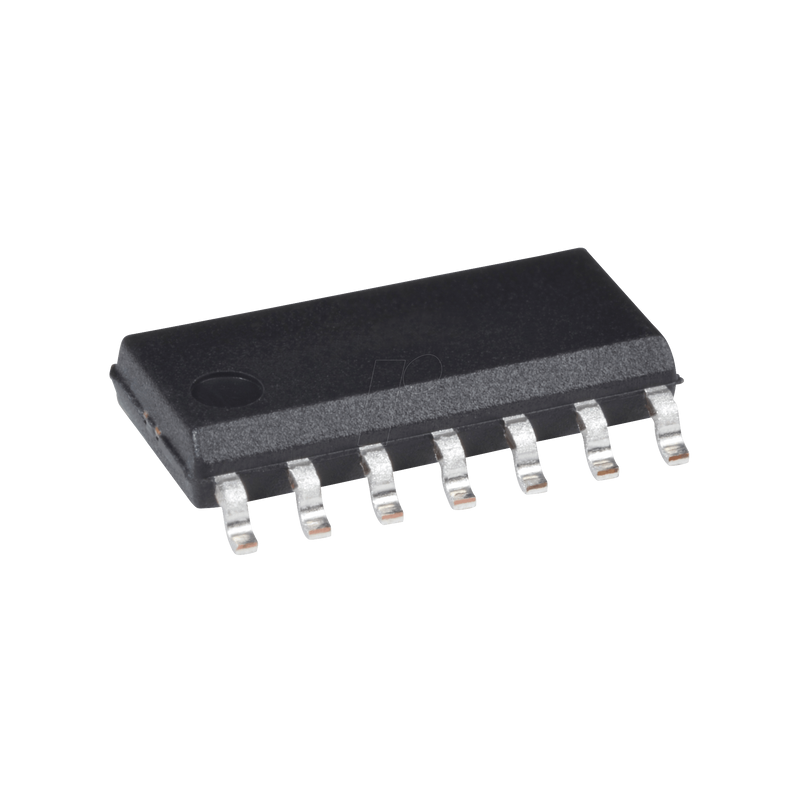

Quadruple buffer, 3-stage, 4.5 - 5.5 V, SO-14

74ABT125 Quad buffer, 3-state

Description:
The 74ABT125 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. The 74ABT125 device is a quad buffer that is ideal for driving bus lines. The device features four output enable inputs (1OE, 2OE, 3OE, 4OE), each controlling one of the 3-state outputs.

Features:
- Quad bus interface
- 3-state buffers
- Live insertion and extraction permitted
- Output capability: HIGH ?32 mA; LOW +64 mA
- Power-up 3-state
- Inputs are disabled during 3-state mode
- Latch-up protection exceeds 500 mA per JESD78 class II level A
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 °C to +85 °C
