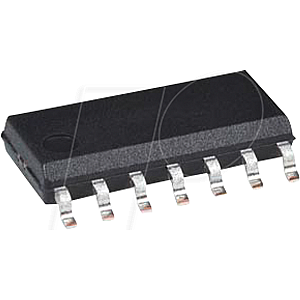

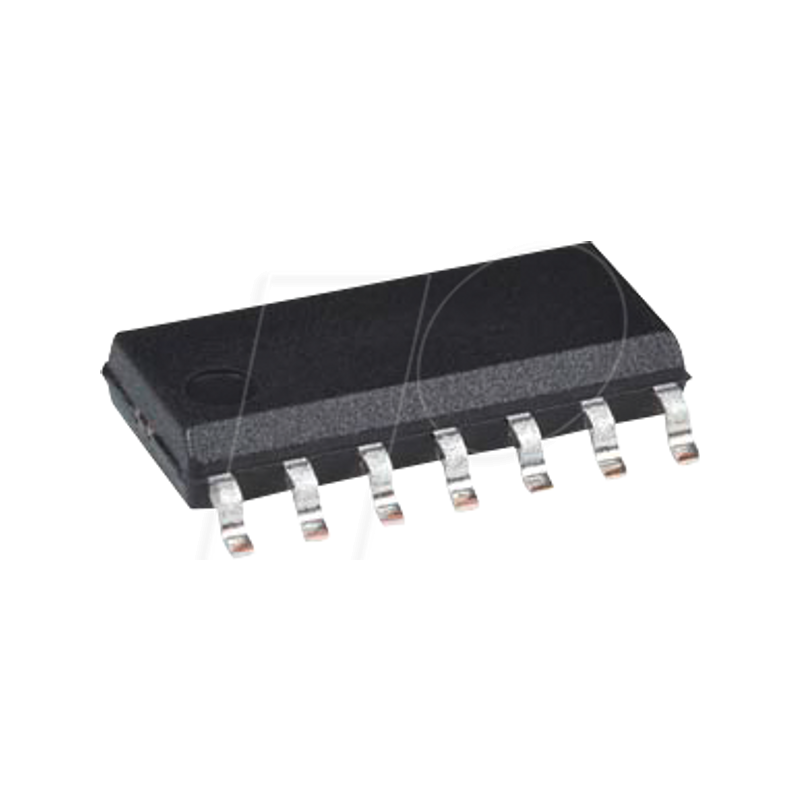

Quadruple buffer, 3-stage, 4.5 - 5.5 V, SO-14

74ABT125 quadruple buffer, 3-stage

Description:
The 74ABT125 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output control. The 74ABT125 device is a quadruple buffer, which is ideal for controlling bus lines. The device has four output-enable inputs (1OE, 2OE, 3OE, 4OE), each of which controls one of the three-state outputs.

Features:
• Quadruple bus interface
• Three-state buffer
• Live insertion and extraction allowed
• Output power: HIGH 32 mA, LOW +64 mA
• Switch on in three-state mode
• Inputs are disabled in three-state mode
• Latch-up protection exceeds 500 mA according to JESD78 Class II Level A
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple housing options
• Specified from -40°C to +85°C
