The MCP446X devices are non-volatile,
8-bit (257 wiper steps) digital potentiometer with EEPROM and an I2C-compatible interface.
The MCP446X family is available with end-to-end resistance values of 5KO, 10KO, 50kO, 50kO and 100KO.
These devices offer WiperLock™ technology that allows the user unlimited reprogramming and locking of the wiper setting.
It is useful for instruments that require factory trimming or recalibration.
The MCP446X offers a variety of configurations that simplify design while minimizing cost, package size and pin count.

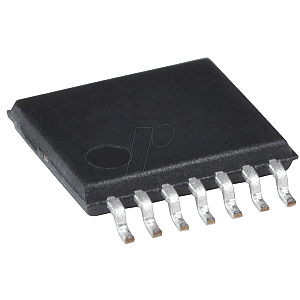

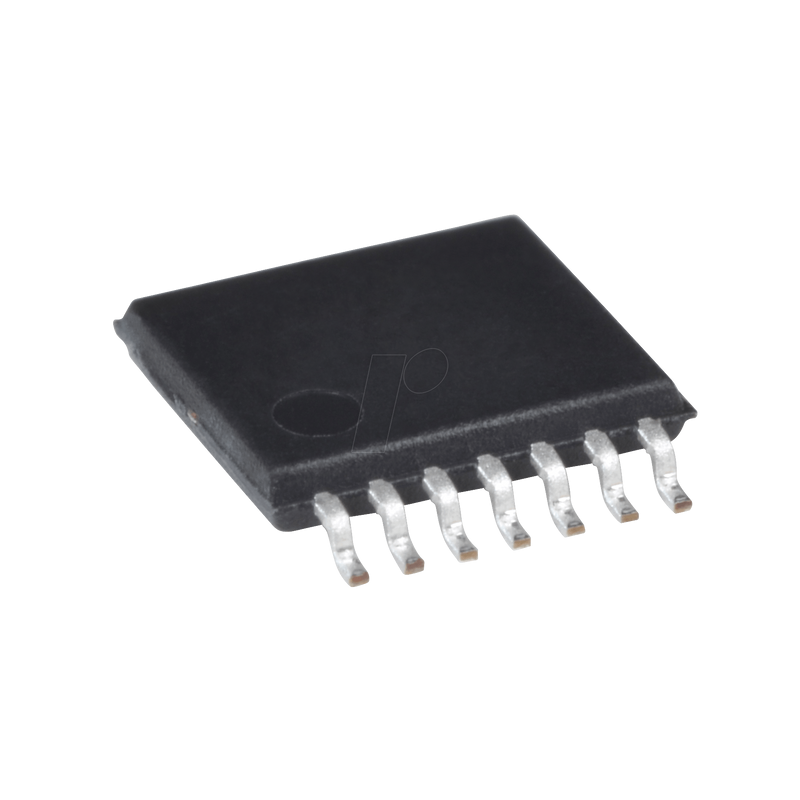

Rheostat, 8-bit 4-channel, 256 steps, 10 kOhm, TSSOP-14
€3.13MCP 4462-103E/ST
Technical information
| General | |
|---|---|
| Model | Potentiometer |
| Type | Rheostat |
| Design | 4-fold |
| Mounting form | TSSOP-14 |
| Resolution | 8 Bit |
| Memory | Nonvolatile |
| Electrical values | |
| Resistor | 10 kOhm |
| Supply voltage | 2.7 ... 5.5 VDC |
| Temperature coefficient | 150 |
| Frequency | 0.1 MHz |
| Implementation | |
| Sample rate | 256 steps |
| Other | |
| Temperature range | -40 ... +125 |
| Interfaces | |
| Interface | I²C |
| Measuring range | |
| Resistor | 10 k Ohm |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | MCP4462-103E/ST |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001097584 |
| HS-Code | 85423990 |
