The propeller chip is designed to provide high-speed processing for embedded systems with low power consumption
and a small footprint. The propeller chip is not only fast, but also offers versatility and performance
with its eight processors, known as cogs, which can simultaneously perform tasks independently or collaboratively, and
boasts a relatively simple architecture that is easy to learn and use. Two programming languages are available: Spin
(a high-level, object-based language) and propeller assembly. Both contain user-defined commands for easy management of the
propeller chip.
In stock
SKU P8X32A-D40

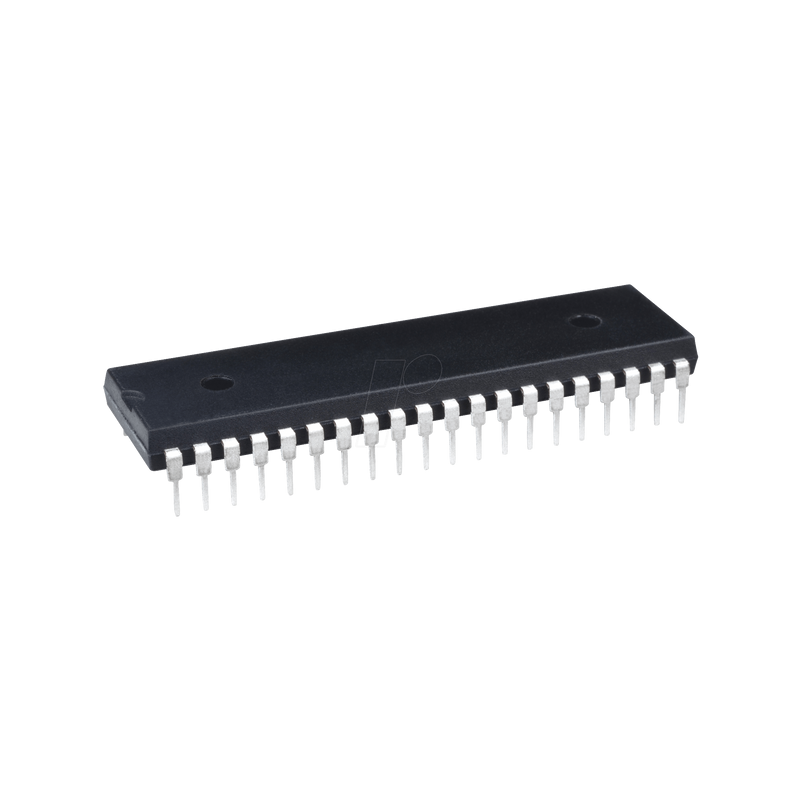

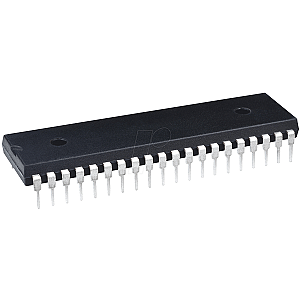

RISC microcontroller, 80 MHz, 32kB, DIP-40
MPN P8X32A-D40
Manufacturer PARALLAX
€17.52
incl. 19% VAT · €14.72 excl. VAT
Package
DIP-40
Specifications
General
Model
Propeller
Mounting form
DIP-40
Design
8 Cogs
Type
32-Bit Mikrocontroller
Technology
RISC
Specials
CPU clock
80 MHz
Implementation
Memory
32
RAM
32 kByte
I/O-Pins
32
32-bit Timer
16
Electrical values
Supply voltage
2.7..3.6 VDC
Supply Voltage Max.
3.6 V
Other
Temperature range
-55..+125
Interfaces
ODC
-
DAC
-
Manufacturer specifications
Manufacturer
PARALLAX
Manufacturer ID
P8X32A-D40
Weight
0.005 kg
RoHS
conform
EAN/GTIN
9900003675773
HS-Code
85423190
