AD 536
The AD 536 is a cost-effective true RMS-to-DC converter. The AD 536 calculates the RMS values of complex AC-DC input waveforms.
FEATURES
- True RMS-to-DC converter
- High degree of accuracy
- Excellent response capability: Calculates RMS of AC and DC signals
- 450 kHz bandwidth: V rms> 100 mV
- 2 MHz bandwidth: V rms> 1 V
- Signal crest factor of 7 for 1% error
- dB output with 60-dB range
- Low power: 1.2-mA quiescent current
- Housing: TO-100
In stock
SKU AD 536 AJH

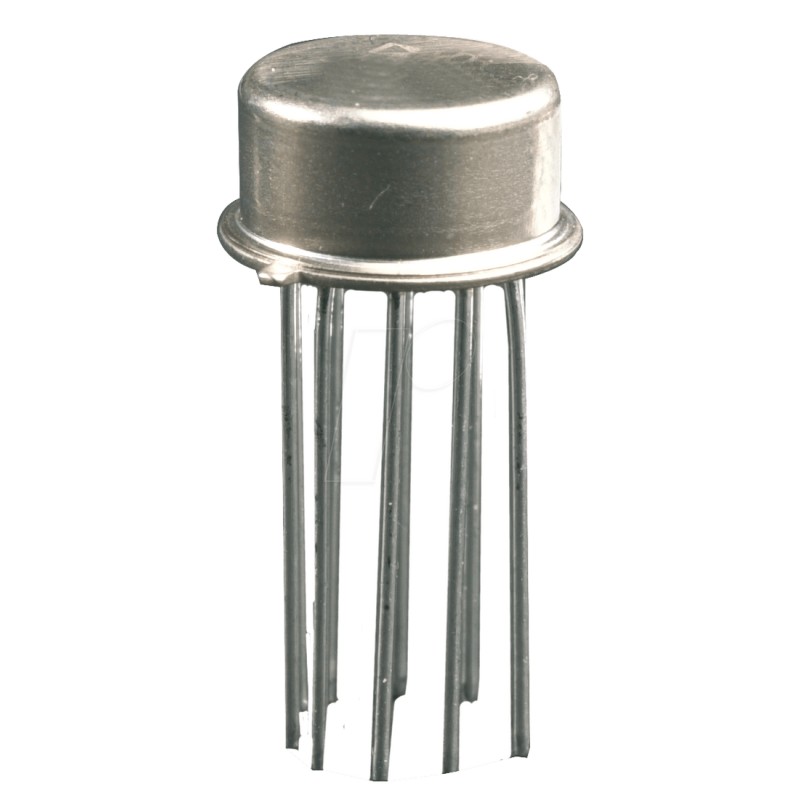

RMS-to-DC converter, 450 KHz, TO-100
MPN AD536AJHZ
Manufacturer ANALOG DEVICES
€105.23
incl. 19% VAT · €88.43 excl. VAT
Package
TO-100
Specifications
General
Model
RMS-to-DC converter
Design
RMS to DC
Mounting form
TO-100
Other
Temperature range
0 +70
Electrical values
Frequency
0.45 MHz
Supply voltage
±25 VDC
Igf
1,2 - 2 mA
Frequency range
2 MHz
Manufacturer specifications
Manufacturer
ANALOG DEVICES
Manufacturer ID
AD536AJHZ
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000038021
HS-Code
85423990
