The AM26LS32A and AM26LS33A devices are quadruple differential line receivers for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high.
In stock
SKU AM 26LS32 ACD

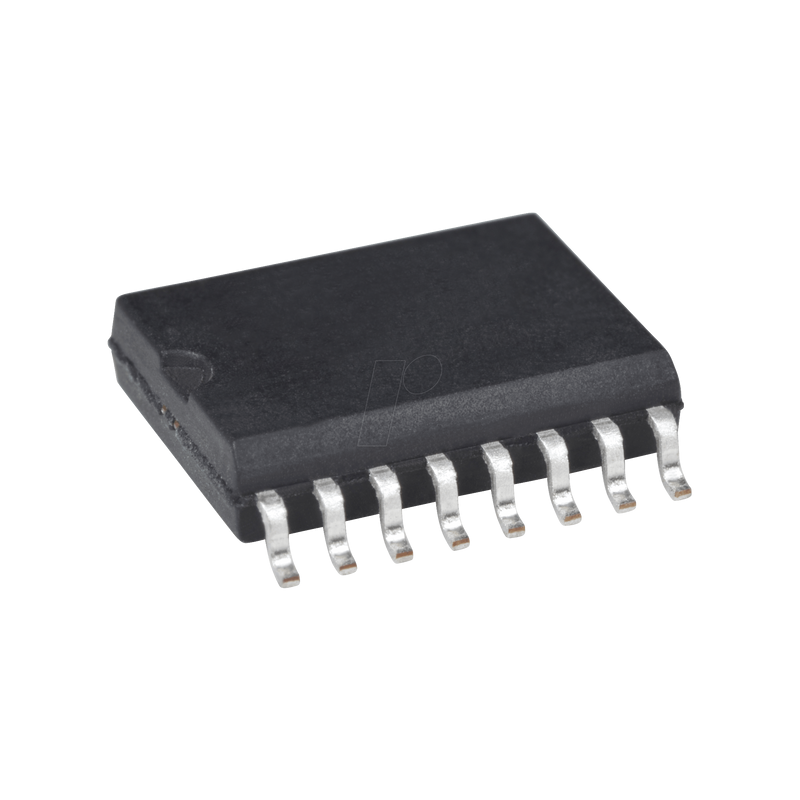

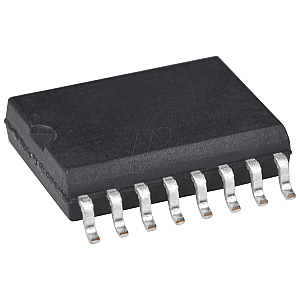

RS422, 4 receivers, SO-16
MPN AM26LS32ACDR
Manufacturer TEXAS INSTRUMENTS
€0.96
incl. 19% VAT · €0.81 excl. VAT
Package
SO-16
Specifications
General
Model
IC interface
Type
RS422
Design
4 receivers
Mounting form
SO-16
Electrical values
Supply voltage
4.75 ... 5.25 VDC
Other
Temperature range
0 ... +70
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
AM26LS32ACDR
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001886119
HS-Code
85423990
