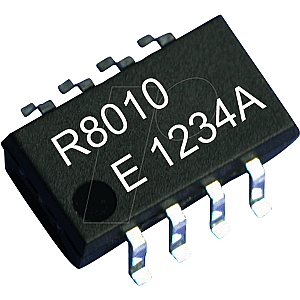

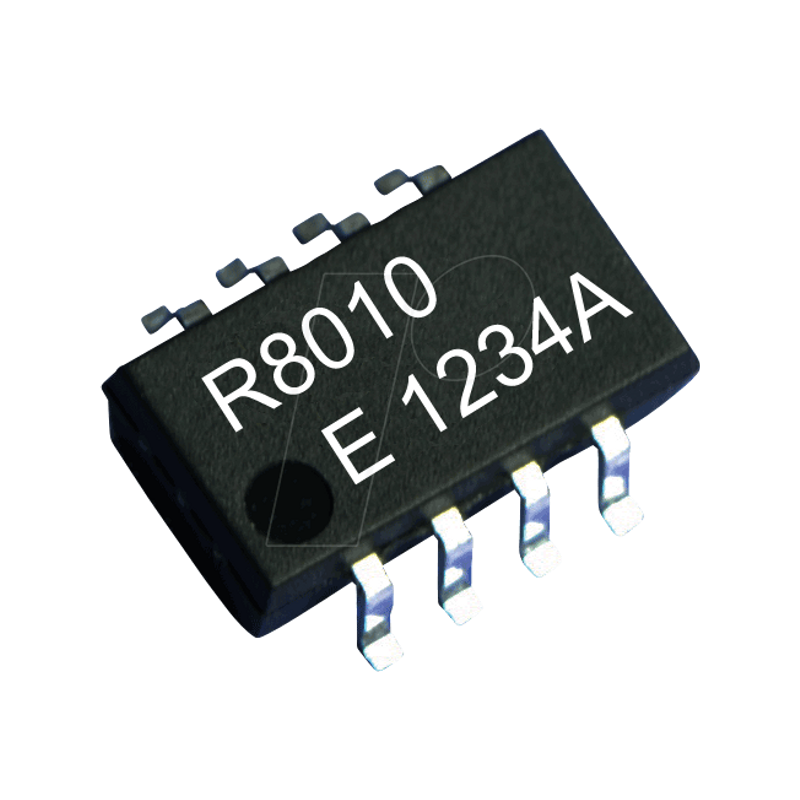

Serial-Interface RTC-Module, 5,0ppm, I²C, SOP-8

Low current consumption
SERIAL-INTERFACE REAL TIME CLOCK MODULE

Overview
This is a real-time clock module of the serial interface system that incorporates a 32.768 kHz crystal oscillator. The real-time clock function incorporates not only a calendar and clock counter for the year, month, day, day of the week, hour, minute, and second, but also a time alarm, interval timer, and time update interruption, among other features.
All of these many functions are implemented in a thin, compact SOP package, which makes it suitable for various kinds of small electronic devices.

· Built in frequency adjusted 32.768-kHz crystal unit.
· Real-time clock function : Clock/calendar function,Long timer function, alarm interrupt function, etc.
· User RAM : Built in 128 bit RAM
· Frequency output function : 32.768 kHz, 1024 Hz, 1Hz
· Interface type : I2C-Bus
· Interface voltage range : 1.6 V ~ 5.5 V
· Timekeeper voltage range : 1.1 V ~ 5.5 V
· Backup current consumption : 160 nA Typ / 3 V
