The ULx200xA devices are high-voltage, high-current . Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.

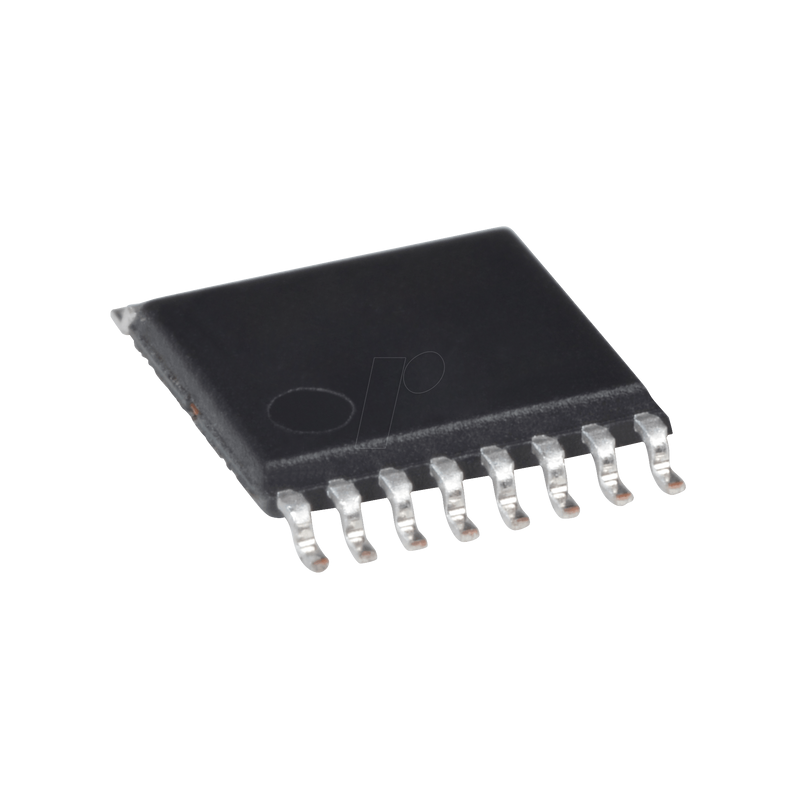

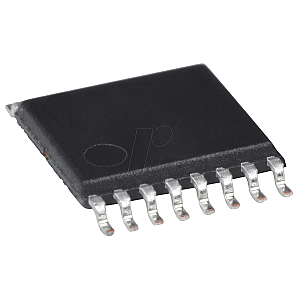

Seven-Darlington arrays, TSSOP-16
€0.86ULN 2003 APW
Technical information
| General | |
|---|---|
| Model | Darlington Arrays |
| Type | TTL/CMOS |
| Design | 7-channel |
| Mounting form | TSSOP-16 |
| Electrical values | |
| Output voltage | Max. 50 V DC |
| Output Current | 500 mA |
| Ic | 1.35 mA |
| Other | |
| Temperature range | -20 .. +70 |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | ULN2003APW |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001890444 |
| HS-Code | 85423990 |
