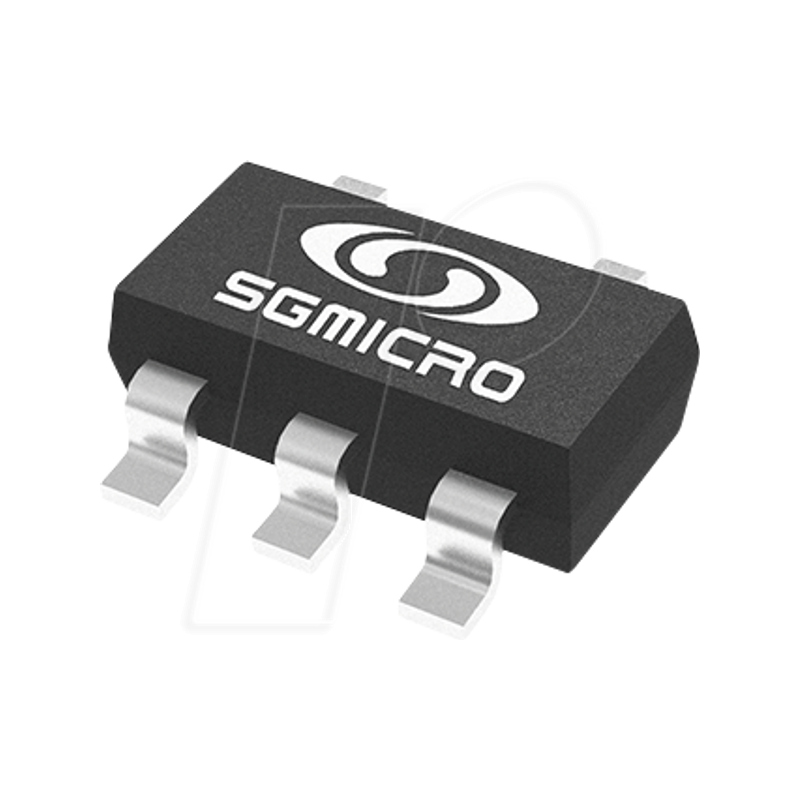

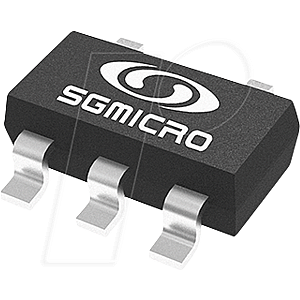

Single Rail-to-Rail-Amplifier, 4,5 - 12V, 57MHz, 115V/µs, SOT-23

Single Rail-to-Rail-Amplifier, 4,5 - 12V, 57MHz, 115V/µs, SOT-23-5

DESCRIPTION
The SGM8301 (single), SGM8302 (dual) and SGM8304 (quad) are unity gain stable devices that combine high speed performance and rail-to-rail outputs. These devices are targeted for applications where an input or an output is exposed to the outside world, such as video and communications. These devices can operate from ±2.25V to ±6V dual power supplies or from 4.5V to 12V single supplies. The common mode input voltage range extends to the negative power-supply rail (ground in single supply applications). The SGM8301/2/4 consume only 8.5mA of quiescent supply current per amplifier while achieving a 100MHz -3dB bandwidth, 56MHz small signal bandwidth for -0.1dB gain flatness, and a 155V/µs slew rate.
The SGM8301/2/4 are specified over the extended -40° to +85° temperature range.

FEATURES
- 4.5V to 12V Single Supplies or ±2.25V to ±6V Dual Power Supplies
- High Speed
- 100MHz -3dB Bandwidth
- 56MHz -0.1dB Gain Flatness
- 155V/µs Slew Rate
- Rail-to-Rail Output
- Low Differential Gain/Phase: 0.02%/0.02°
- High Output Drive: 103mA
- -40? to +85? Operating Temperature Range
- Small Packaging:
- SGM8301 Available in SOT-23-5, SOIC-8 and MSOP-8
- SGM8302 Available in MSOP-8 and SOIC-8
- SGM8304 Available in SOIC-14 and TSSOP-14

APPLICATIONS
- Video Line Driver
- Video-on-Demand
- Set-Top Boxes
- Surveillance Video Systems
- Analog-to-Digital Converter Interface
- CCD Imaging Systems
- Digital Cameras
