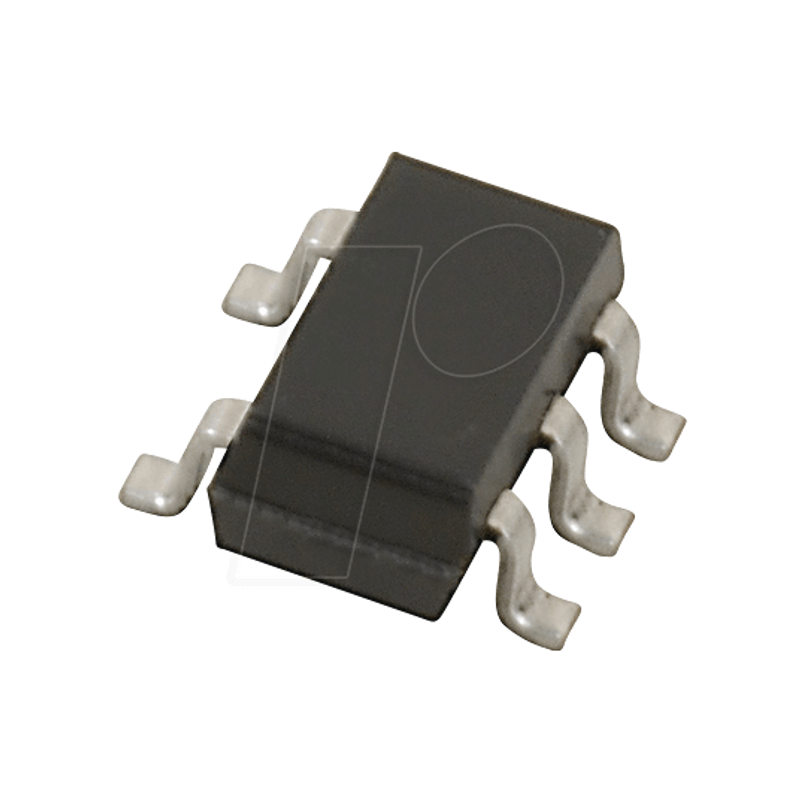

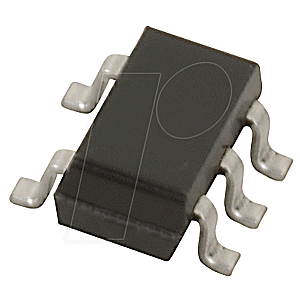

Single Schmitt trigger inverter, 1.65 ... 5.5 V, SOT-23-5

Single Schmitt Trigger Inverter

Description:

This single Schmitt trigger inverter is designed to operate from 1.65 V to 5.5 V VCC. The SN74LVC1G14 device contains an inverter and performs a Boolean function. The device operates as an independent inverter with Schmitt trigger inputs, so the device has different input thresholds for positive going (VT+) and negative going (VT-) signals to provide hysteresis (deltaVT) that makes the device tolerant of slow or noisy input signals.
The NanoFree™ package technology is a major breakthrough in IC package concepts that use the chip as the package. This device is fully specified for partial power-down applications with Ioff. The Ioff circuit disables the outputs when the device is turned off. This prevents current from flowing back into the device, which prevents damage to the device.

Features
- Latch-up power exceeds 100 mA per JESD 78, Class II
- ESD protection exceeds JESD 22
- 2000-V human-body model (A114-A)
- 200-V machine model (A115-A)
- 1000-V charged model (C101)
- Available in the Texas Instruments NanoFree™ package.
- Supports 5-V VCC operation
- Inputs accept voltages up to 5.5 V
- Max tpd of 4.6 ns at 3.3 V
- Low power consumption, 10-µA Max ICC
- ±24-mA output drive at 3.3 V
- Ioff supports operation in partial power-down mode

Applications

- AV receiver
- Audio Dock: Portable
- Blu-ray player and home cinema
- Embedded PC
- MP3 player/recorder (portable audio)
- Personal Digital Assistant (PDA)
- Power Supply: Telecom/Server AC/DC supply:Single controller: analog and digital.
- SSD Drive: Customer and Enterprise
- TELEVISION: Analog and Digital
- SSD Drive: Customer and Enterprise
- TELEVISION: LCD/Digital and High-Definition (HDTV)
- Video Analysis: Server
- Wireless headset, keyboard and mouse
