The 25-series serial flash component has a four-wire SPI-compatible interface. The SST25PF020B devices are equipped to have improved operating frequencies and lower power consumption.
The SPI serial flash memories are manufactured with SST proprietary high-performance CMOS SuperFlash technology.

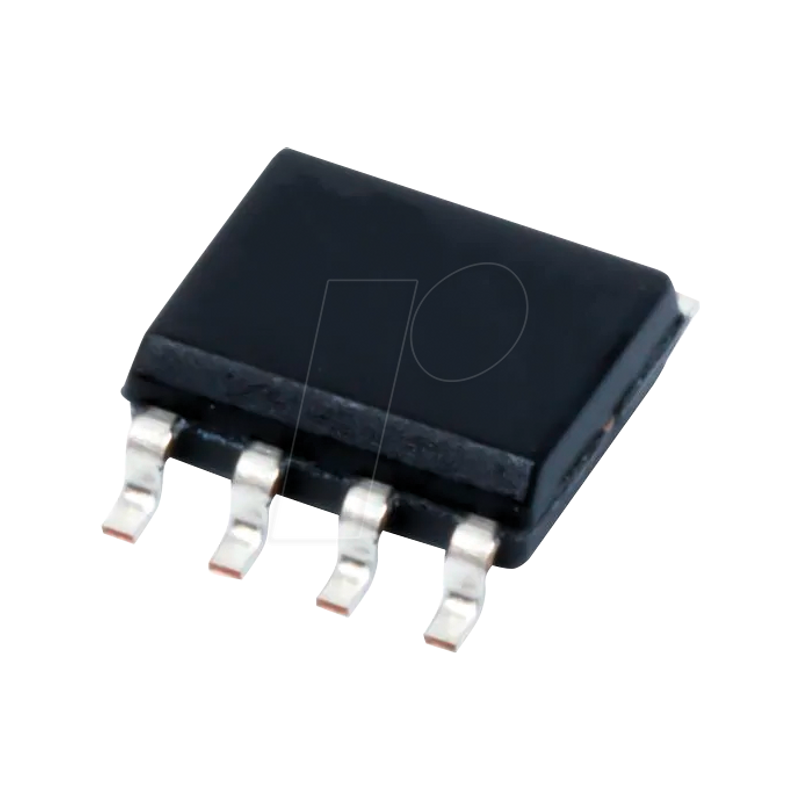

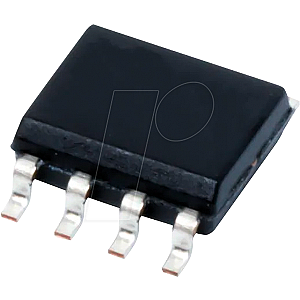

Special memory, 2 Mb (256 K x 8), 2.7 ... 3.6 V, SO-8
€1.4925PF020B80-4C-S
Technical information
| General | |
|---|---|
| Model | Flash |
| Type | Serial |
| Memory | 2 Mb |
| Design | SPI |
| Mounting form | SOIC-8 |
| Electrical values | |
| Frequency | 80 MHz |
| Supply voltage | 2.7..3.6 VDC |
| Other | |
| Temperature range | 0..+70 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | SST25PF020B-80-4C-SAE |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001373657 |
| HS-Code | 85423261 |
