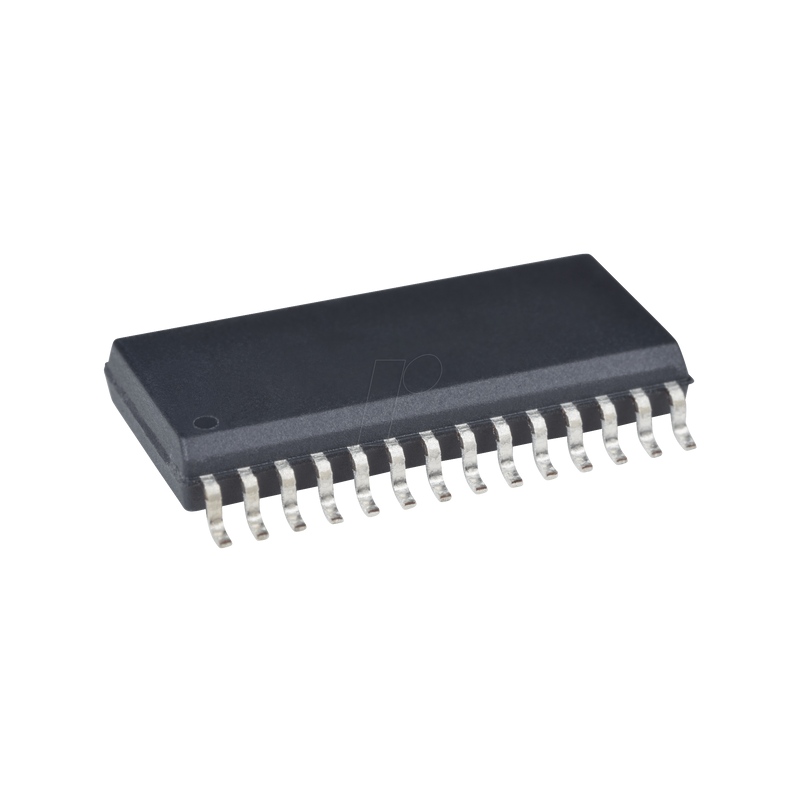

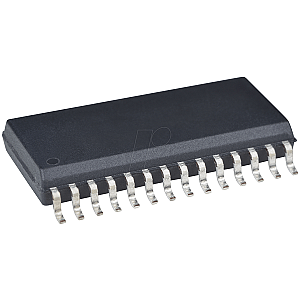

SRAM, 1 Mb (128 K x 8), 5 V, 35ns, SOP-32

128Kx8 low-power CMOS static RAM, SRAM, 5-V 35-ns SOP32

Description
The ISSI IS62C1024AL/IS65C1024AL is a low power, 131,072-word by 8-bit CMOS static RAM. It is fabricated using high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE1 is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels. Easy memory expansion is provided by using two Chip Enable inputs, CE1 and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.

Features
- High-speed access time: 35, 45 ns
- Low active power: 100 mW (typical)
- Low standby power: 20 µW (typical) CMOS standby
- Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications
- Fully static operation: no clock or refresh required
- TTL compatible inputs and outputs
- Single 5V (±10%) power supply
- Standard Pin Configuration:
- 32-pin SOP/ 32-pin TSOP (Type 1)
- Lead free available
