64K x 16 high-speed CMOS static RAM with 3.3-V SUPPLY, SRAM 3.3-V 64kx16 10-ns TSOP44(II)
The ISSI IS61LV6416/IS61LV6416L is a high-speed, 1,048,576-bit static RAM organised as 65,536 words by 16 bits. It is fabricated using ISSI high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns with low power consumption.

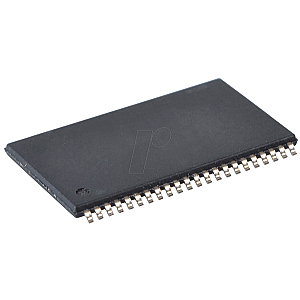

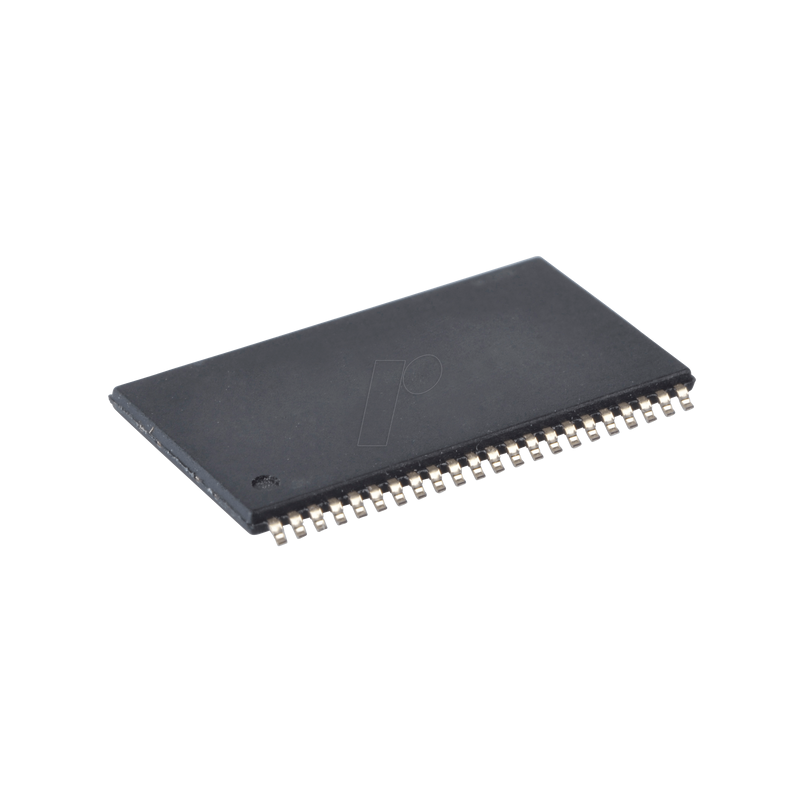

SRAM, 1 Mb (64 K x 16), 3.135 ... 3.6 V, TSOP-44
€4.88IS61LV6416-10TL
Technical information
| General | |
|---|---|
| Model | SRAM |
| Type | High Speed |
| Design | asynchron |
| Memory | 64 kb (4kx16) |
| Mounting form | TSOP-44 |
| Electrical values | |
| Access time | 10 ns |
| Supply voltage | 3.3 VDC |
| Other | |
| Temperature range | 0 ... +70 |
| Implementation | |
| Word Size | 16 bit |
| Manufacturer specifications | |
| Manufacturer | ISSI |
| Manufacturer ID | IS61LV6416-10TLI |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001465628 |
| HS-Code | 85423245 |
