32k x 8-bit low-power CMOS SRAM, SRAM, 5 V, 32k x 8, 55 ns, DIP28
The AS6C62256 is a 262,144-bit low-power CMOS static random access memory organised as 32,768 words by 8 bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the operating temperature range. The AS6C62256 is well designed for low-power applications and particularly well suited for battery-backed non-volatile memory applications. The AS6C62256 operates with a wide-range power supply of 2.7 ~ 5.5 V

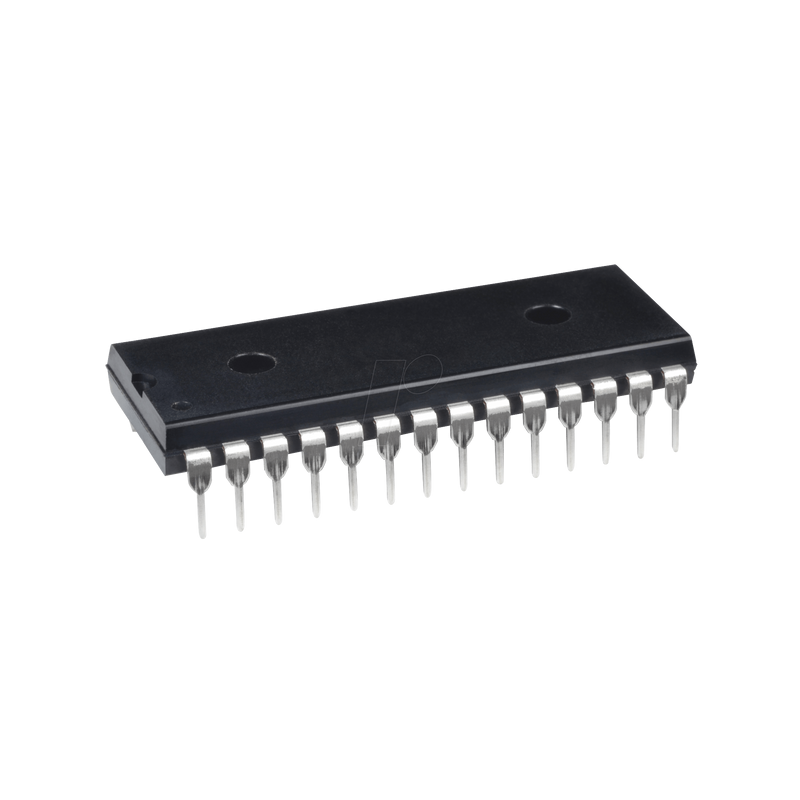

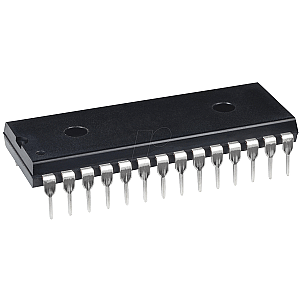

SRAM, 256 Kb (32 K x 8), 5 V, 55ns, DIL-28
€7.47AS 6C62256-55PCN
Technical information
| General | |
|---|---|
| Model | SRAM |
| Type | Low-Power |
| Design | asynchron |
| Memory | 256 kb (32kx8) |
| Mounting form | DIP-28 |
| Electrical values | |
| Access time | 55 ns |
| Supply voltage | 2.7 ... 5.5 VDC |
| Other | |
| Temperature range | 0 ... +70 |
| Implementation | |
| Word Size | 8 bit |
| Manufacturer specifications | |
| Manufacturer | ALLIANCE |
| Manufacturer ID | AS6C62256-55PCN |
| Weight | 0.005 kg |
| RoHS | conform |
| EAN/GTIN | 9900001465512 |
| HS-Code | 85423245 |
