512K X 8 bit Low Power CMOS SRAM, SRAM, 5V 512kx8 55ns DIP32
The AS6C4008 is a 4,194,304-bit low power CMOS static random access memory organized as 524,288 words of 8 bits. It is manufactured using very high performance, high reliability CMOS technology. Its standby current is stable within the operating temperature range.
The AS6C4008 is designed for very low power applications and is particularly well suited for non-volatile memory applications with battery backup.
The AS6C4008 operates from an operating voltage of 2.7V~ 5.5V and all inputs and outputs are fully TTL compatible.
Technical Data
- 512K X 8 BIT
- 55 ns access time
- 30 mA Current consumption typical
- 4 µA in standby
- data retention voltage: 1.5 V
In stock
SKU AS6C4008-55SIN

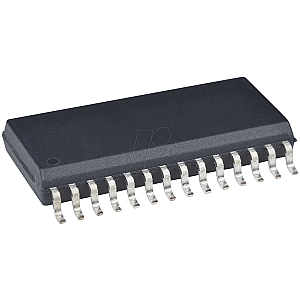

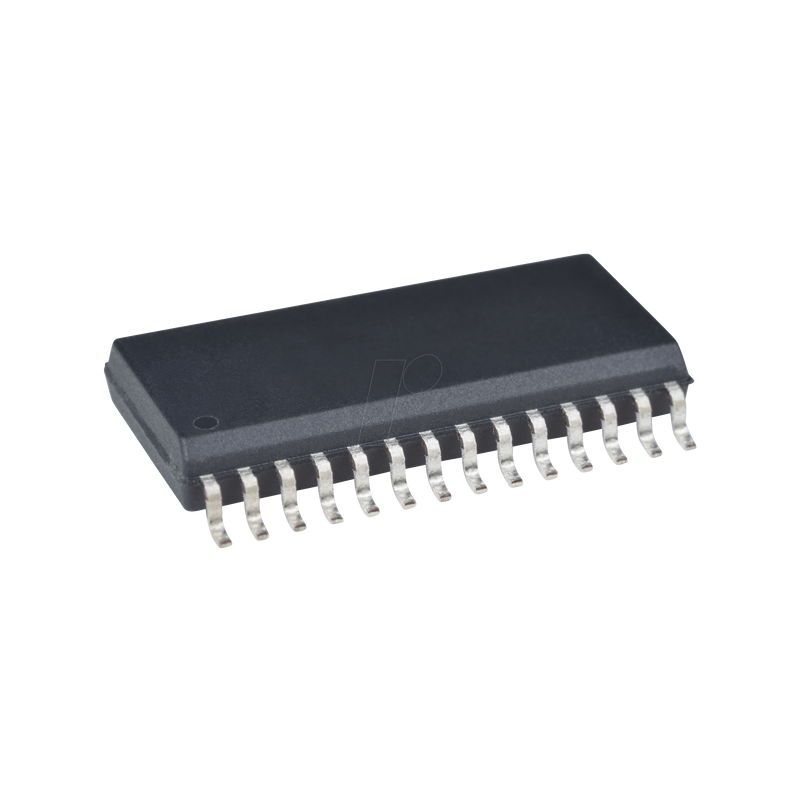

SRAM, 4 Mb (512 K x 8), 5 V, 55ns, SOP-32
MPN AS6C4008-55SIN
Manufacturer ALLIANCE
€7.12
incl. 19% VAT · €5.98 excl. VAT
Package
SOP-32
Specifications
General
Model
SRAM
Type
Low-Power
Design
asynchron
Memory
4 Mb (512kx8)
Mounting form
SOP-32
Electrical values
Access time
55 ns
Supply voltage
2.7 ... 5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
ALLIANCE
Manufacturer ID
AS6C4008-55SIN
Weight
0.0014 kg
RoHS
conform
EAN/GTIN
9900003105423
HS-Code
85423245
