The LM5010 Step Down Switching Regulator features all the functions needed to implement a low cost, efficient, buck bias regulator capable of supplying in excess of 1A load current. This high voltage regulator contains an N-Channel Buck Switch, and is available in thermally enhanced 10-pin WSON and 14-pin HTSSOP packages. The hysteretic regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation.
In stock
SKU LM 5010 MH

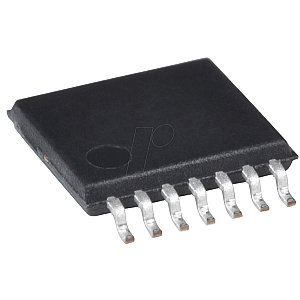

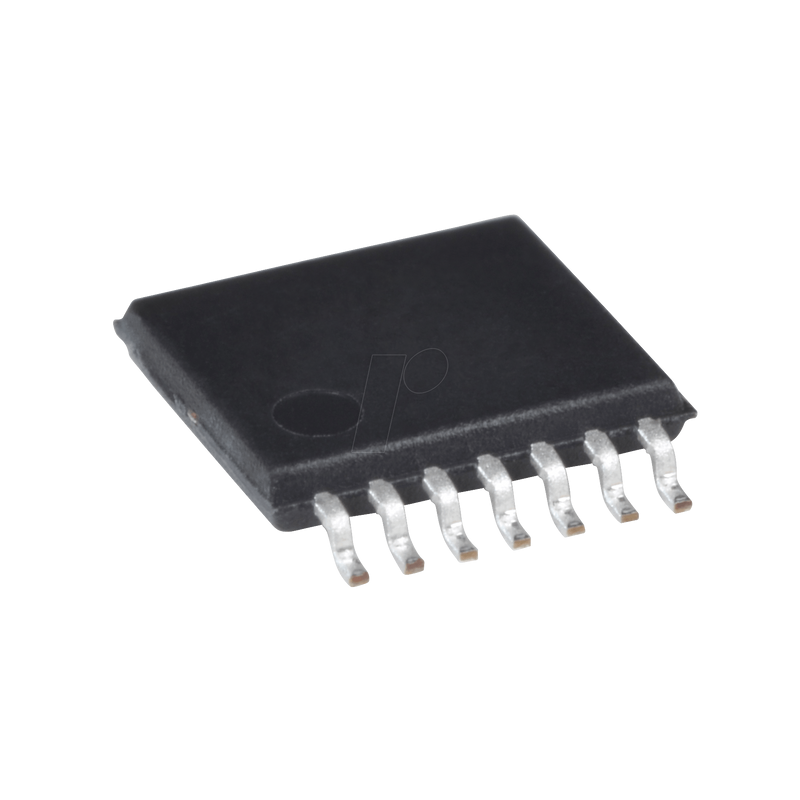

Step-down, adj., 8 ... 75 V, 2,5 ... 70 V, HTSSOP-14
MPN LM5010MH/NOPB
Manufacturer TEXAS INSTRUMENTS
€5.21
incl. 19% VAT · €4.38 excl. VAT
Package
HTSSOP-14
Specifications
General
Model
Switching controller
Type
Step-down converter
Design
Adjustable
Mounting form
HTSSOP-14
Electrical values
Input voltage
8 - 75 VDC
Output voltage
2.5 - 70 V DC
Switching frequency
100 - 1000 kHz
IF(AV)
1 A
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
LM5010MH/NOPB
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001877612
HS-Code
85423990
