High current switching regulator with up to 4 A output current.
Input voltage: 9 - 46 V
Output voltage: 5.1 - 40 V
- 0-100 % duty cycle
bulletpoint# precise ±2 % reference
- switching frequency up to 200 kHz
- up to 90 % efficiency
- soft start
- reset output
- externally programmable limitation
In stock
SKU L 296

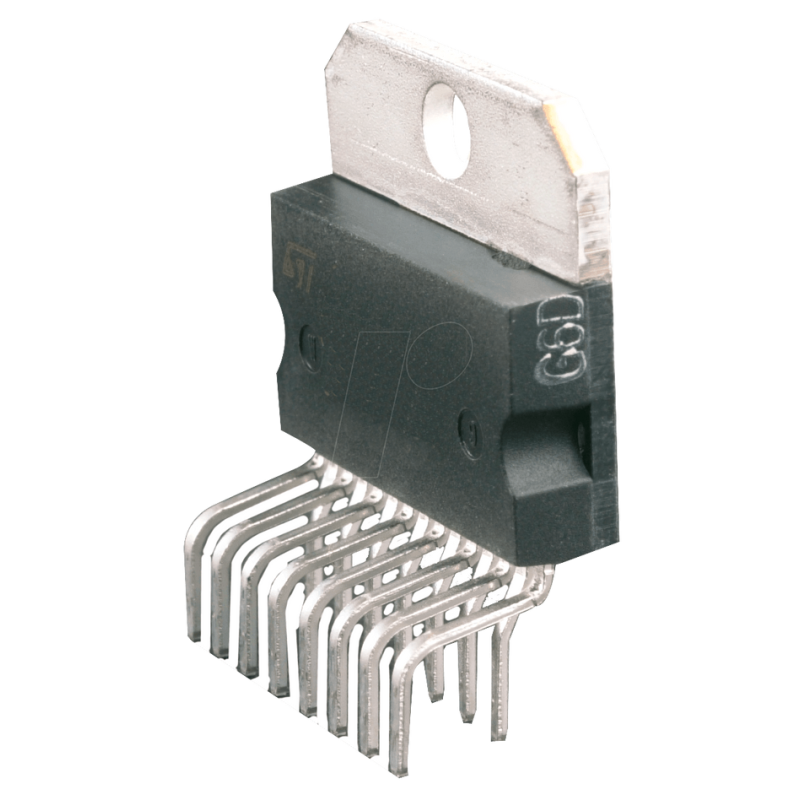

Step-down, Vi:9..46 V, Vo: 5.1..40 V, 4 A Multiwatt-15
MPN L296
Manufacturer STMICROELECTRONICS
€14.36
incl. 19% VAT · €12.07 excl. VAT
Package
Multiwatt-15
Specifications
General
Model
Controller
Type
4 A
Mounting form
Multiwatt-15
Electrical values
Input voltage
9 ... 46 VDC
Output voltage
5,2 - 46 V DC
Output Current
4 A
Switching frequency
200 kHz
Igf
30 ... 40 mA
Other
Temperature range
-40 ... +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L296
Weight
0.0057 kg
RoHS
conform
EAN/GTIN
9900000096656
HS-Code
85423990
