The LM5022 is a high voltage low-side N-channel MOSFET controller ideal for use in boost and SEPIC regulators. It contains all of the features needed to implement single ended primary topologies. Output voltage regulation is basedon current-mode control, which eases the design of loop compensation while providing inherent input voltage feed-forward.
In stock
SKU LM 5022 MM

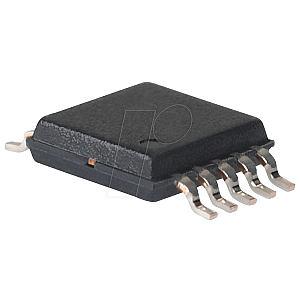

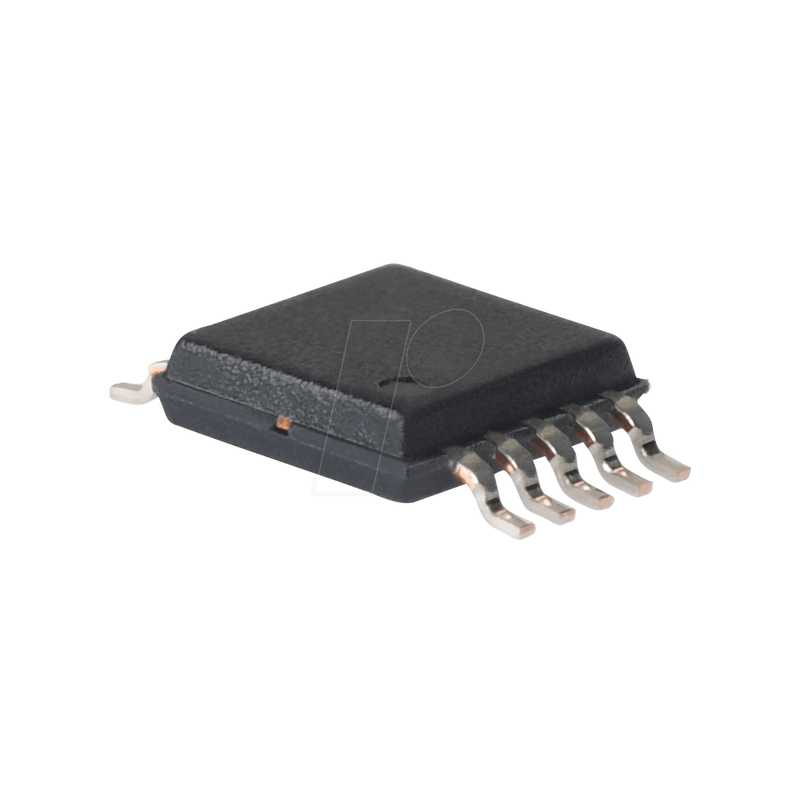

Step-up, adj., 6 ... 60 V, 1,25 ... 57 V, VSSOP-10
MPN LM5022MM/NOPB
Manufacturer TEXAS INSTRUMENTS
€7.25
incl. 19% VAT · €6.09 excl. VAT
Package
VSSOP-10
Specifications
General
Type
Step-up converter
Model
Switching controller
Design
Controller
Mounting form
VSSOP-10
Other
Temperature range
-40 ... +125
Electrical values
Input voltage
6 - 60 VDC
Switching frequency
1115 kHz
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
LM5022MM/NOPB
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001877636
HS-Code
85423990
