The LM5118 wide voltage range Buck-Boost switching regulator controller features all of the functions necessary to implement a high performance, cost efficient Buck-Boost regulator using a minimum of external components. The Buck- Boost topology maintains output voltage regulation when the input voltage is either less than or greater than the output voltage, making it especially suitable for automotive applications.

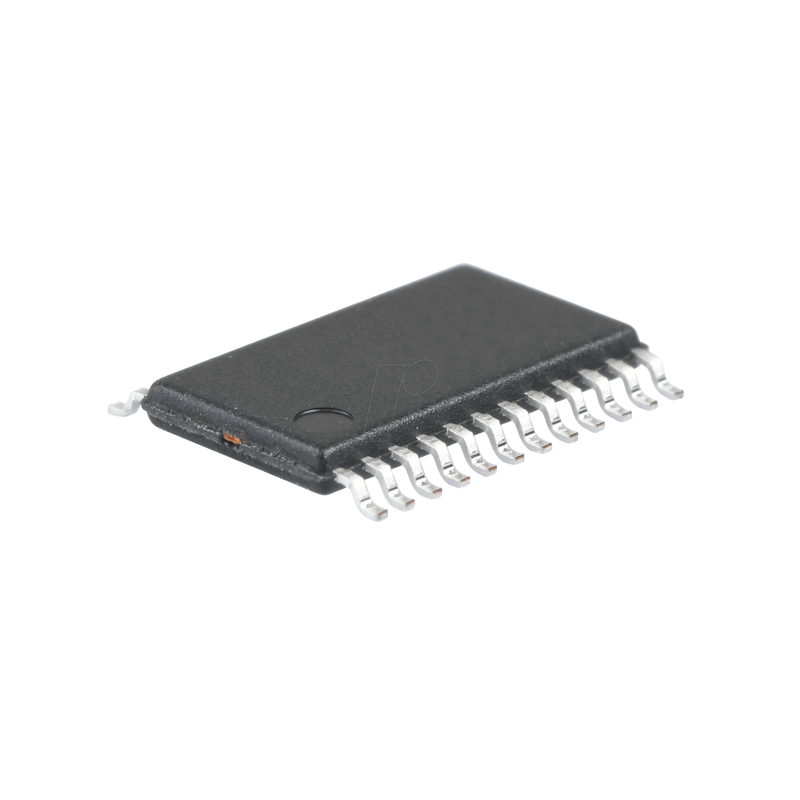

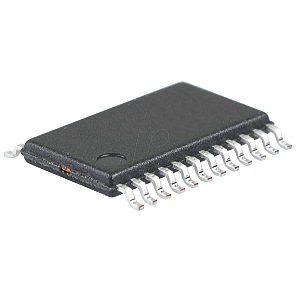

Step-up/down, adj., 3 ... 75 V, 1,23 ... 16 V, HTSSOP-20
€10.33LM 5118 MH
Technical information
| General | |
|---|---|
| Model | Switching controller |
| Type | Step-down/step-up converter |
| Design | Adjustable |
| Mounting form | HTSSOP-20 |
| Other | |
| Temperature range | -40 ... +125 |
| Electrical values | |
| Supply voltage | 3 - 75 VDC |
| Switching frequency | 575 kHz |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | LM5118MH/NOPB |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001877728 |
| HS-Code | 85423990 |
