The HEF4066B has four independent bilateral analogue switches (transmission gates). Each switch has two input/output terminals (Y/Z) and an active HIGH enable input (E). When E is connected to VDD a low impedance bidirectional path between Y and Z is established (ON condition). When E is connected to VSS the switch is disabled and a high impedance between Y and Z is established (OFF condition). The HEF4066B is pin compatible with the HEF4016B but exhibits a much lower ON resistance. In addition the ON resistance is relatively constant over the full input signal range.
Pinning
- E0 to E3 enable inputs
- Y0 to Y3 input/output terminals
- Z0 to Z3 input/output terminals
Application information
- Analogue and digital switching
In stock
SKU HEF 4066BT NXP

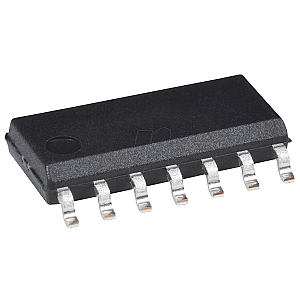

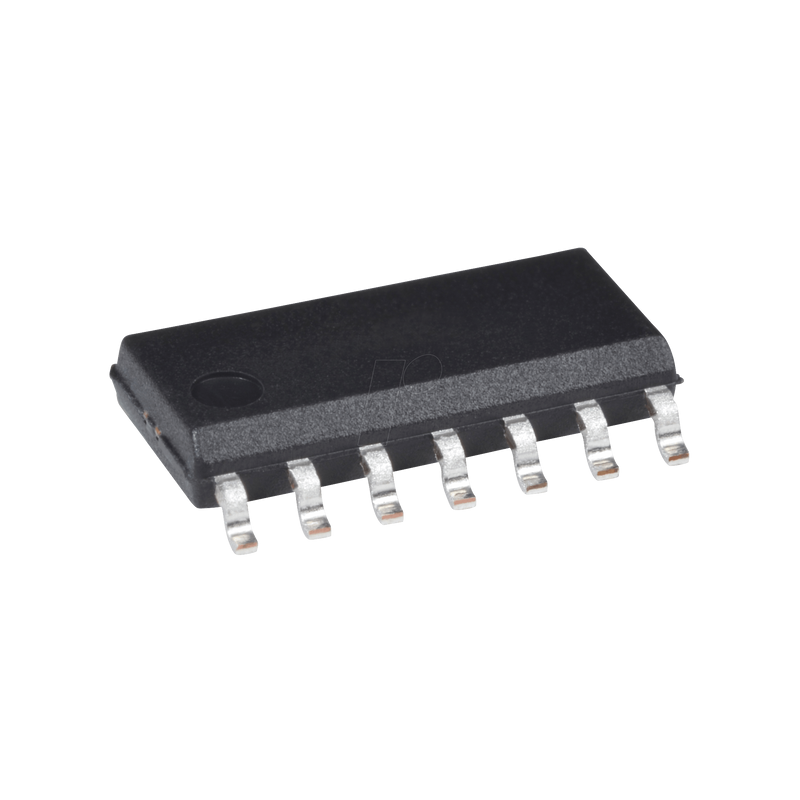

Switch, quad, 3 ... 15 V, SO-14
MPN HEF4066BT,653
Manufacturer NEXPERIA
€0.17
incl. 19% VAT · €0.14 excl. VAT
Package
SO-14
Specifications
General
family
4000B
Model
Analog Switch
Design
bilateral
Mounting form
SO-14
Manufacturer specifications
Manufacturer
NEXPERIA
Manufacturer ID
HEF4066BT,653
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002192394
HS-Code
85423990
