The TMC2209 is the ultimate stepper driver for desktop solutions, allowing stall detection and extremely silent operation at the same time. Pin-compatible with a number of legacy drivers, it supports higher current while reducing cooling requirements.
The TMC2209 pin compatibility makes it the perfect candidate for existing design upgrades and bringing improved applications to the market. With the new feature set, the chip is ideal for POS devices, 3D printers and conventional printers, office and home automation, textile, security cameras and ATM machines, as well as battery operated equipment.
Features and benefits
- Driver for 2-phase stepper motors up to 2A RMS and 4.75
29V
- Step/Dir and single wire UART interface
- Simultaneous use of StealthChop™ and StallGuard™
- Low power standby to fit EUP or battery operation
- Low RDSon, low heat-up - LS 170m? & HS 170m? (typ. at 25°C)
- Compact 5x5mm² QFN28 package

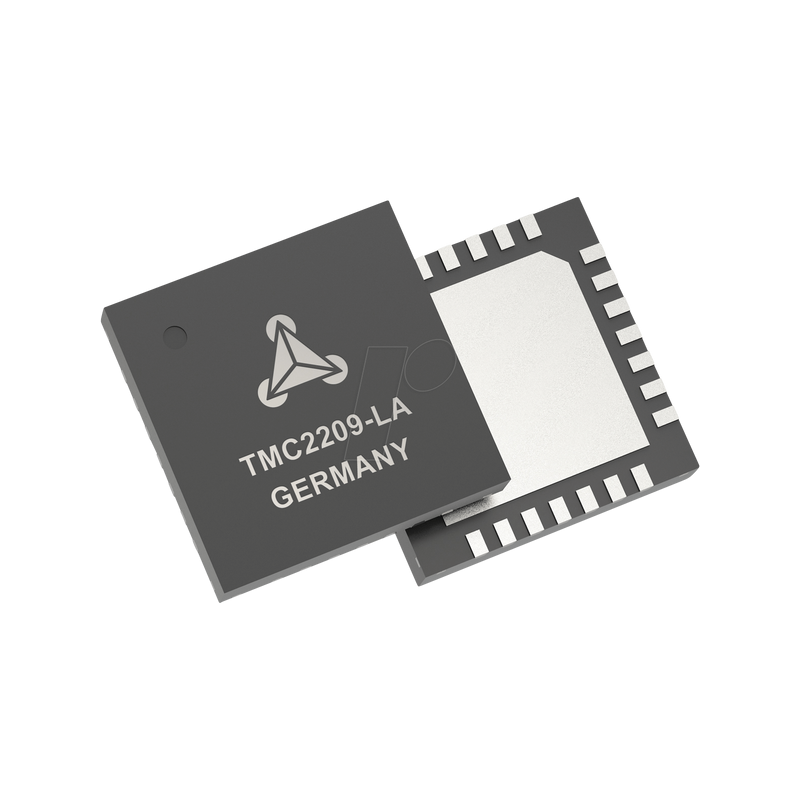

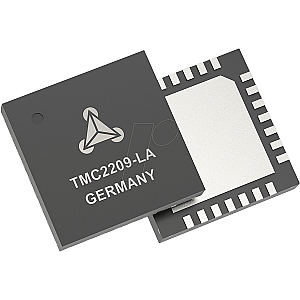

TMC2209 Stepper motor driver, 2.0A
€3.79TMC2209-LA
Technical information
| General | |
|---|---|
| Model | Motor driver |
| Type | Motor driver |
| Mounting form | QFN-28 |
| Electrical values | |
| Supply voltage | 4.75 .. 29 VDC |
| Output voltage | 5.5..29 V DC |
| Output Current | 2.0 A |
| Interfaces | |
| Interfaces | Step/Dir, UART |
| Other | |
| Temperature range | -40 .. 125 |
| Manufacturer specifications | |
| Manufacturer | TRINAMIC |
| Manufacturer ID | TMC2209-LA-T |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900002847027 |
| HS-Code | 85423990 |
